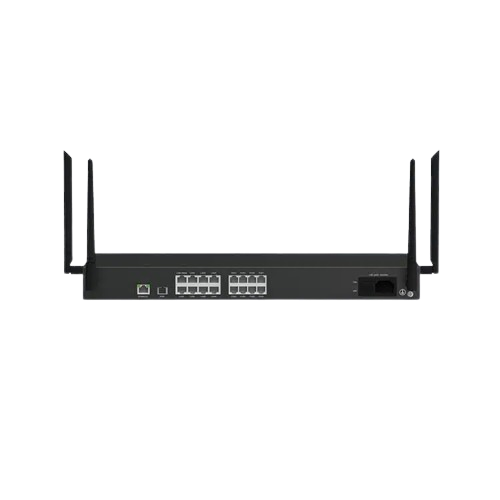

Model: ICT3310D-8G8S2NAC Spec: 1XPON+8GE+8POTS ICT

V.SOL

1XPON+8GE+8POTS ICT

Name: 1XPON+8GE+8POTS ICT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: ICT3310D-8G8S2NAC ,Spec: 1XPON+8GE+8POTS ICT

Contact Now

DataSheet PDF

Description
Reviews

Description

The ICT3310D series is a cutting-edge broadband access device designed to meet the diverse needs of users seeking multiple business integration. The ICT3310D-8G8S2NAC model leverages mature and stable PON technology, offering high-cost performance and combining it with advanced 802.11ac wireless technology (2T2R), LAN switch technology, and high-quality VoIP technology. This results in a highly reliable, easily manageable, and QoS-guaranteed solution.

Technical Specifications

Power Adapter Input: 220V AC, 50Hz
System Power Supply: Refer to the device nameplate for specifications
Ambient Temperature: -10°C to +55°C
Ambient Humidity: 5% to 95% (non-condensing)
Storage Temperature: -40°C to +70°C
Storage Humidity: 5% to 95% (non-condensing)

Technical Parameter

Parameter	Hardware Parameter
Parameter	XPON
Chipset	RTL9607CP
PON	SC single-mode/single-fiber, Downstream rate 2.5Gbps, Upstream rate 1.25Gbps
Wavelength	Tx 1310nm, Rx 1490nm
Sensitivity	<-27dBm(CLASS B+)
Optical Type	SC/PC
Interface Type	8 *10/100/1000MbpsAuto adaptive Ethernet interfaces, Full/Half Duplex, RJ45 connector, 8POTS, RJ11 connector
WiFi Interface	Compliant with IEEE802.11b/g/n/ac 2.4GHz Operating frequency: 2.400-2.483GHz 5.0GHz Operating frequency: 5.150-5.825GHz Support MIMO, 2T2R,5dBi external antenna Support: multiple SSID TX power: 11n–20dBm/11ac–23dBm
Indicators	26, For POWER / SYS / CONSOLE / USB / PON / Lan / Phone/WLAN

Parameter Name	Software Parameter
Parameter Name	XPON
LAN	Support Port rate limiting
WAN	Support config first LAN interface as wan interface
WLAN	Integrated 802.11b/g/n/ac Support max 128 users Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) Modulation type: DSSS、CCK and OFDM Encoding scheme: BPSK、QPSK、16QAM and 64QAM
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode Support VLAN translation mode
Multicast	Support IGMPv1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
QoS	Support 4 queues Support SP and WRR Support 802.1P Support DSCP
L3	Support IPv4、IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Statics Support Static route Support NAT Support Bridge, Route ,Route and Bridge mixed mode Support DMZ Support DNS Support ALG Support UPnP Support Virtual Server
DHCP	Support DHCP Server Support DHCP Relay
VoIP	Support SIP protocol Support Voice coding: ITU-T G.711A/G.711U/G.722/G.729, auto-negotiate with call agent Support Echo cancellation exceeding ITU-T G.165/G.168-2002, up to 128ms tail length Support high/low speed fax/Modem, bypass fax, and T38 fax Support InBand / RFC2833/INFO DTMF, MD5 authentication, call forward,call waiting, hot-line call, and all kinds of additional service. Three-party conferencing
Performance	Data loss: <1*10E-12 Call loss: <0.01%
Security	Support Firewall Support Mac filter Support ACL Support URL filter
Management	Support OMCI(ITU-T G.984.x) Support CTC OAM 2.0 and 2.1
Management	Support WEB Support TR069 Support TELNET Support CLI
Application	Support l2tp andIpsec VPN Support EOIP Support VxLan Support Web Push
