1*2.5GbE+1GE ONT Model: V2802RH Spec: 1*XPON+1*2.5GE+1*GE Weight: 130g

V.SOL

V2802RH (1*2.5GbE+1GE ONT

Name: V2802RH (1*2.5GbE+1GE ONT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2802RH , Spec: 1*XPON+1*2.5GE+1*GE

Contact Now

DataSheet PDF

Description
Reviews

Description

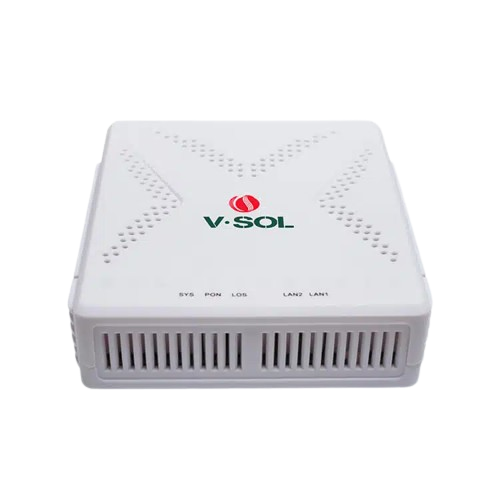

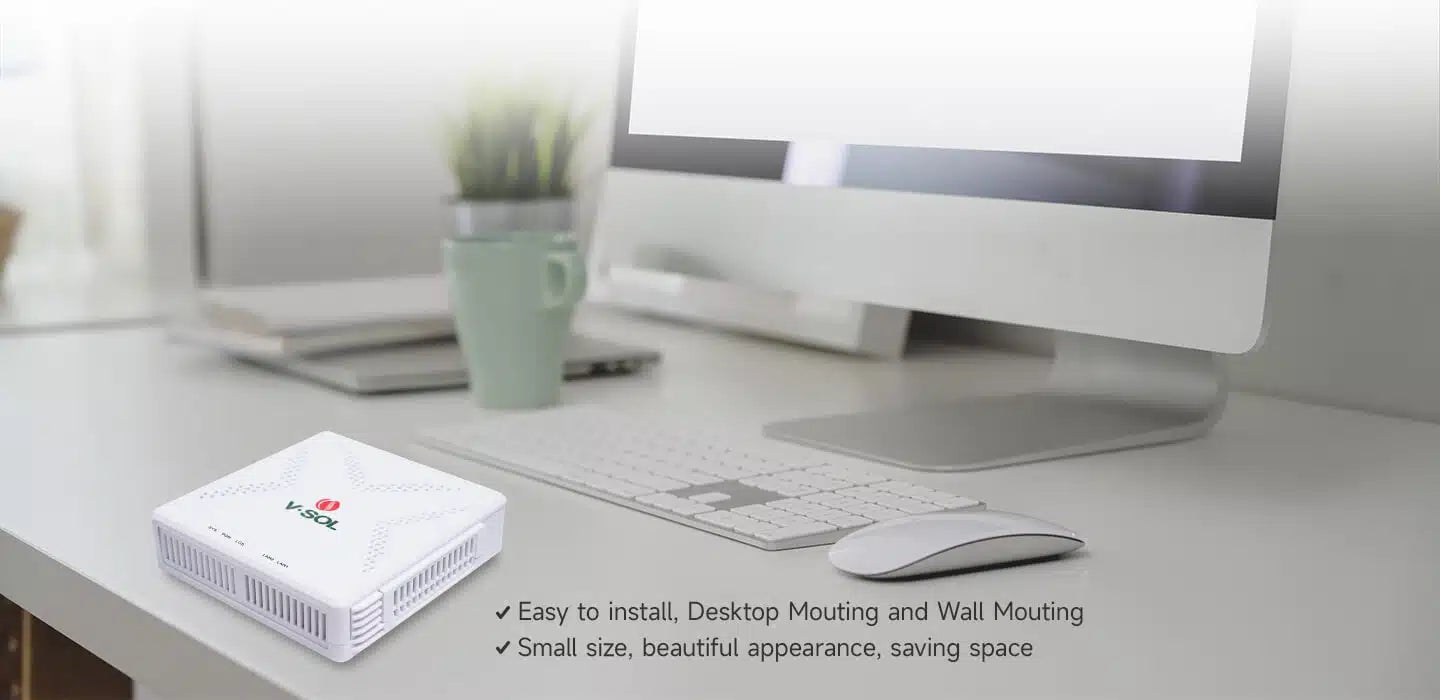

Product Description: V2802RH ONT

The V2802RH ONT (Optical Network Terminal) is a cutting-edge device designed for high-speed internet connectivity and reliable networking. With its advanced features and robust design, this ONT is perfect for homes and small businesses seeking fast and stable connections.

Key Features:

1 x 2.5 Gigabit Ethernet Port: High-speed internet connectivity for devices
1 x Gigabit Ethernet Port: Additional connectivity option for devices
1 x XPON Port: Supports Passive Optical Network (PON) connections

Product Specifications:

Model: V2802RH
Type: 1*2.5GbE+1GE ONT
Specification: 1XPON+12.5GE+1*GE

This ONT is designed to provide fast and reliable internet connectivity, making it an ideal choice for those seeking a robust and future-proof networking solution.

Specifications

○ Hardware Parameter
Dimension	100mm92mm29.5mm(LWH)
Net weight	0.13KG
Operating condition	Operating temp: –20 ~ +60°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp:-30~+70℃ Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Interfaces	12.5GbE+1GE(Option for V2802RH)

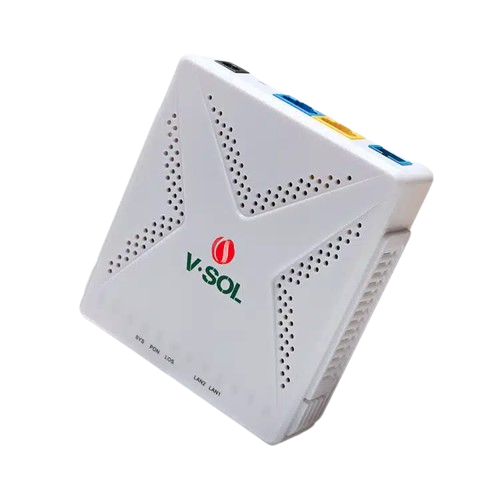

Indicators	POWER, PON, LOS, WAN, LAN1, LAN2

○ Interface parameter

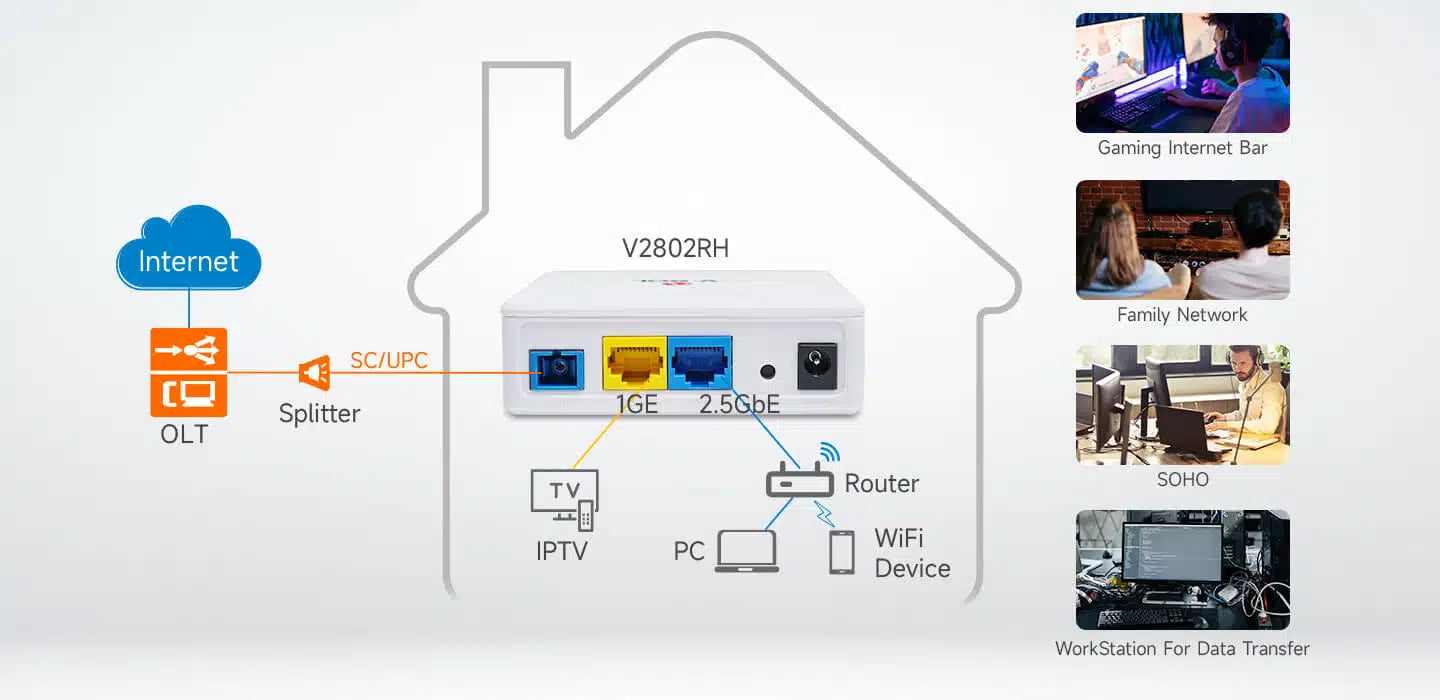

PON interface	1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

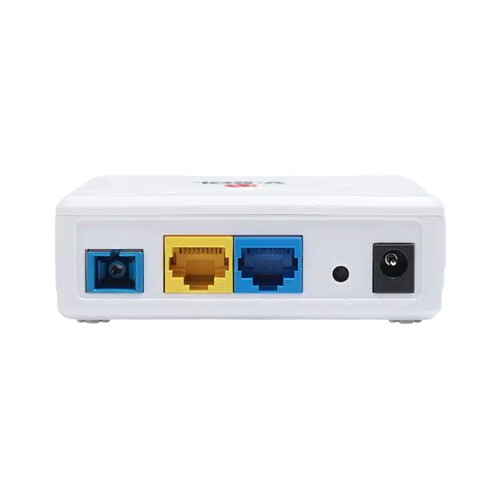

LAN interface	12.5GbE+1GE(Option), Auto-negotiation RJ45 connectors
Button	Reset

○ Function Data
XPON Mode	Dual mode,Auto-access to EPON/GPON OLT
Uplink Mode	Bridging and Routing Mode
Abnormal protection	Detecting Rogue ONU, Hardware Dying Gasp
Firewall	DDOS, Filtering Based on ACL/MAC/URL
Basic	Support MPCP discover®ister Support authentication Mac/Loid/Mac+Loid Support Triple Churning Support DBA bandwidth Support auto-detecting, auto-configuration, and auto firmware upgrade Support SN/Psw/Loid/Loid+Psw authentication
Alarm	Support Dying Gasp Support Port Loop Detect Support Eth Port Los
LAN	Support Port rate limiting Support Loop detection Support Flow control Support Storm control
VLAN	Support VLAN tag mode Support VLAN transparent mode Support VLAN trunk mode(max 8 vlans) Support VLAN 1:1 translation mode(≤8 vlans) Auto VLAN detection
Multicast	Support IGMPv1/v2/Snooping Max Multicast vlan 8 Max Multicast Group 64
QoS	Support 4 queues Support SP and WRR Support 802.1P
L3	Support IPv4 Support DHCP/PPPOE/Static IP Support Static route Support NAT
Management	Support CTC OAM 2.0 and 2.1 Support ITUT984.x OMCI Support TR069/WEB/TELNET/CLI
