V.SOL

1GE+1FE+CATV+WiFi ONU

Name: 1GE+1FE+CATV+WiFi ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2802GWT , Spec: 1GE+1FE+WiFi+CATV ONU

Contact Now

DataSheet PDF

Description
Reviews

Description

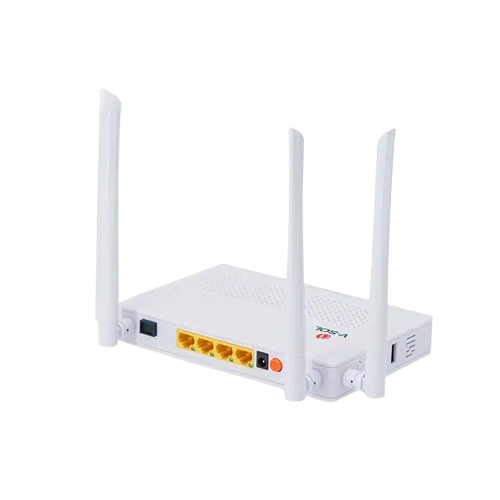

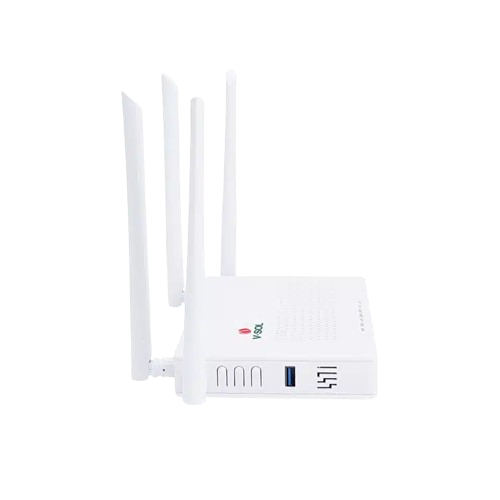

Product Description: V2802GWT ONU

The V2802GWT ONU (Optical Network Unit) is a cutting-edge networking device that offers a versatile combination of connectivity options. With its sleek design and robust features, this ONU is perfect for modern homes and small businesses.

Key Features:

1 Gigabit Ethernet Port: High-speed internet connectivity for devices
1 Fast Ethernet Port: Additional connectivity option for devices
WiFi: Wireless connectivity for devices, enabling flexible networking
CATV: Supports Cable TV connections, providing a comprehensive entertainment experience

Product Specifications:

Model: V2802GWT
Type: 1GE+1FE+WiFi+CATV ONU

This ONU is designed to provide reliable, high-speed internet and entertainment connectivity, making it an ideal choice for those seeking a robust and versatile networking solution.

Specifications

Technical item	1GE+1FE+WiFi+CATV
PON interface	1 XPON connector, SC single-mode/single-fiber, downlink/uplink 1.25Gbps.
Wavelength	Tx1310nm, Rx 1490nm, CATV 1550nm.
Optical interface	1 PON interface, 1 CATV interface, SC connector
LAN interface	1x 10/100/1000Mbps auto adaptive Ethernet interfaces and 1x 10/100M Full/Half. RJ45 connector.
RF interface	1 RF output interface.
Wireless	Compliant with IEEE802.11b/g/n, 300Mbps, 2T2R.
LED	7, For Status of POWER, LOS, REG, GE, FE, CATV and WiFi.
Operating condition	Temperature: -5℃～55℃ Humidity: 10%～90%（non-condensing）
Storing condition	Temperature :-30℃～60℃ Humidity :10%～90%（non-condensing）
Power supply	DC 12V/1A
Power consumption	≤8W
Dimension	158mm×115mm×33mm（L×W×H）
Net weight	0.4Kg
