1GE+1POTS HGU Model: HG322G Spec: 1*XPON+1*GE+1*POTS Weight: 110g

V.SOL

HG322G (1GE+1POTS HGU

Name: HG322G (1GE+1POTS HGU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: HG322G , Spec: 1*XPON+1*GE+1*POTS

Contact Now

DataSheet PDF

Description
Reviews

Description:

The HG322G HGU (Home Gateway Unit) is a compact and versatile device that combines high-speed internet connectivity, voice over IP (VoIP) capabilities, and traditional voice services in a single unit. This HGU is perfect for homes and small businesses seeking a reliable and feature-rich networking solution.

Key Features:

1 Gigabit Ethernet Port: High-speed internet connectivity for devices
1 POTS (Plain Old Telephone Service) Port: Supports traditional voice services
XPON Technology: Enables high-speed internet connectivity over fiber-optic networks

Product Specifications:

Model: HG322G
Type: 1GE+1POTS HGU
Specification: 1XPON+1GE+1*POTS
Weight: 110g (compact and lightweight design)

This HGU is designed to provide a robust and reliable internet connection, voice services, and a versatile networking solution, making it an ideal choice for those seeking a high-performance and feature-rich device.

Specification

○ Hardware Parameter
Dimension	100mm92mm29.5mm(L×W×H)
Net weight	110g
Operating condition	Operating temp: 0 ~ +55°C Operating humidity: 10~90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V/1A, external AC-DC power adaptor
Power supply	≤10W

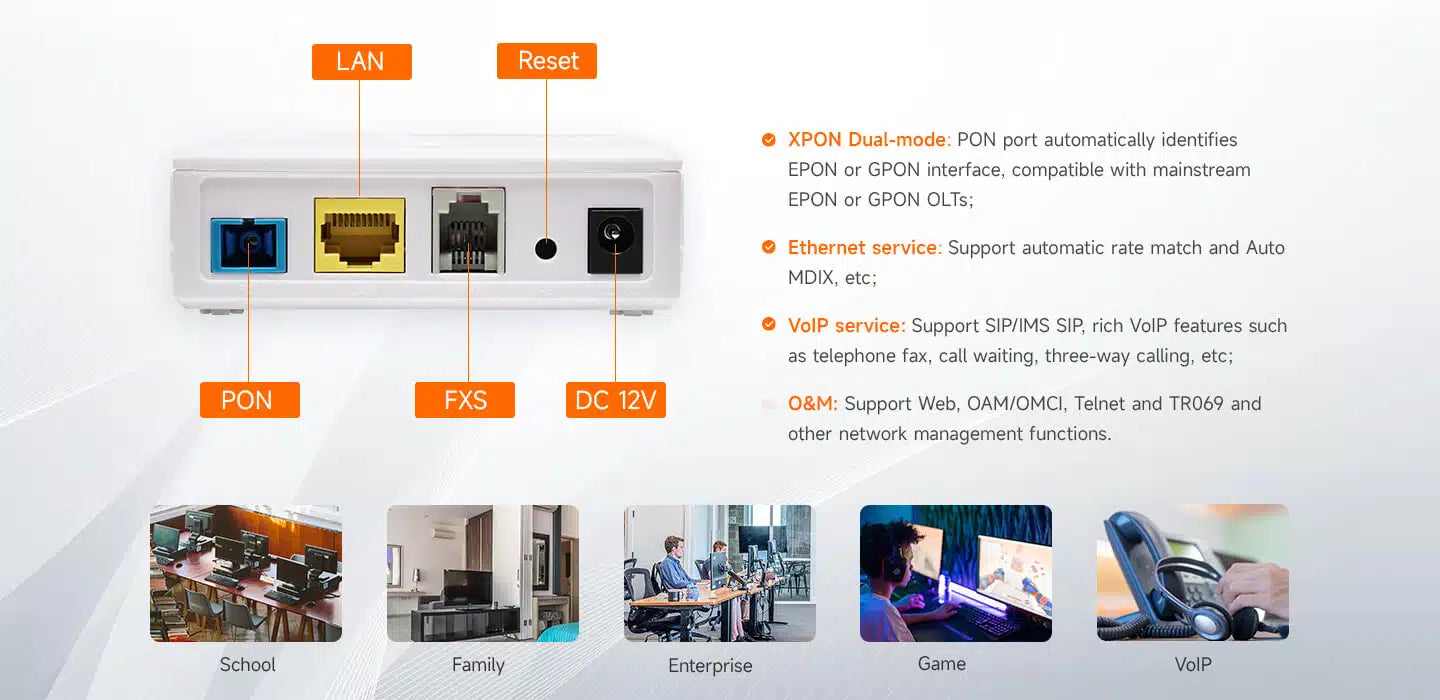

Interface	1GE+1POTS
Indicators	PWR, PON, LOS, WAN, LAN, PHONE

○ Interface Parameter
PON interface	1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm

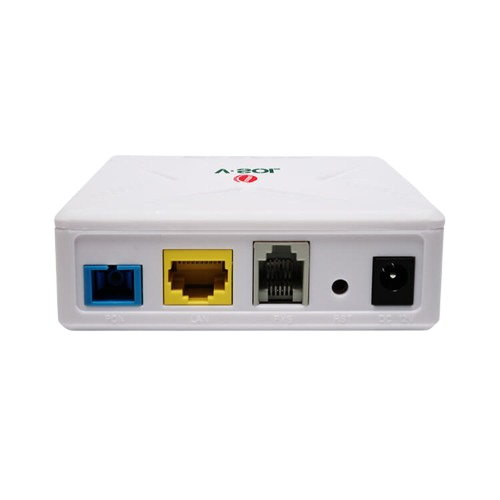

User interface	1GE, Auto-negotiation,RJ45 ports 1POTS RJ11 Connector

○ Function Data
Management	OAM/OMCI, Telnet, WEB, TR069 Support full management of HGU functions by VSOL OLT
Multicast	Support IGMP v1/v2/v3 Support IGMP Proxy and MLD Proxy Support IGMP Snooping and MLD Snooping
Internet connection	Support Bridge, Route and Bridge/Route mixed mode
VLAN	Support VLAN tag mode Support VLAN trunk mode Support VLAN translation
Data Service Functions	Full speed non-blocking switching 2K MAC address table 4K VLAN ID Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc Support auto polarity detection of Ethernet ports (AUTO MDIX) Integrated IEEE802.1p QoS with four level priority queues Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
VoIP	SIP and IMS SIP Codec∶G.711/G.723/G.726/G.729 codec Echo cancellation,VAD/CNG,DTMF T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
QoS	Support 4 queues Support SP and WRR Support 802.1P and DSCP
L3	Support IPv4, IPv6 and IPv4/IPv6 dual stack Support DHCP/PPPOE/Static Support Static route Support DHCP Server Support NAT/DMZ/DDNS Support Virtual Server
Security	Support Firewall Support Mac filter Based on MAC or URL Support ACL
