1GE+1POTS+WiFi 4 HGU ONT

Name: 1GE+1POTS+WiFi 4 HGU ONT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: HG322RGW , Spec: 1GE+1POTS+WiFi 4

Contact Now

DataSheet PDF

Description
Reviews

Description

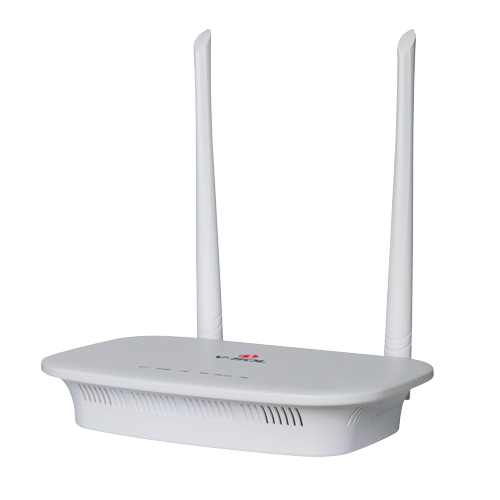

Product Description: HG322RGW HGU ONT

The HG322RGW HGU (Home Gateway Unit) ONT (Optical Network Terminal) is a cutting-edge device that combines high-speed internet connectivity, voice over IP (VoIP) capabilities, and wireless connectivity in a single unit. This HGU ONT is perfect for homes and small businesses seeking a reliable and versatile networking solution.

Key Features:

1 Gigabit Ethernet Port: High-speed internet connectivity for devices
1 POTS (Plain Old Telephone Service) Port: Supports traditional voice services
WiFi 4: Wireless connectivity with 4 antennas for enhanced coverage

Product Specifications:

Model: HG322RGW
Type: 1GE+1POTS+WiFi 4 HGU ONT
Specification: 1GE+1POTS+WiFi 4

This HGU ONT is designed to provide a robust and reliable internet connection, voice services, and wireless connectivity, making it an ideal choice for those seeking a versatile and high-performance networking solution.

Specifications

Hardware Parameter
Dimension	170mm112mm31mm(LWH)
Net weight	0.180KG
Operating condition	Operating temp: 0 ~ +50°C Operating humidity: 10 ~ 90% (non-condensing)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensing)
Power adapter	DC 12V/1A, external AC-DC power adaptor
Power supply	≤6W
Interfaces	1GE+1POTS+WiFi 4

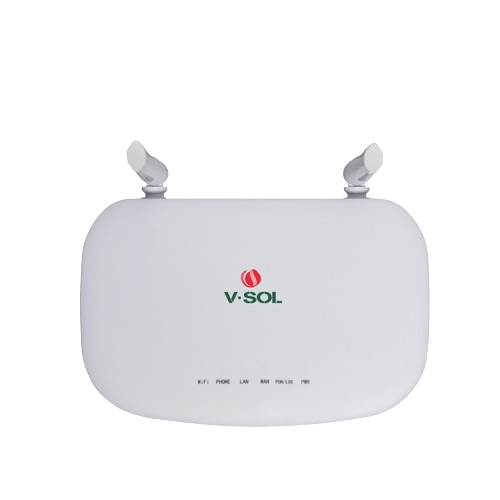

Indicators	PWR, PON/LOS, WAN, LAN, PHONE, WiFi

Interface Parameter
PON interface	1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX1490nm
WIFI interface	IEEE802.11b/g/n (TX power: 17dBm/16dBm/ 15dBm), Up to 300Mbps 2T2R, 5dBi external antenna Support 13 Channels

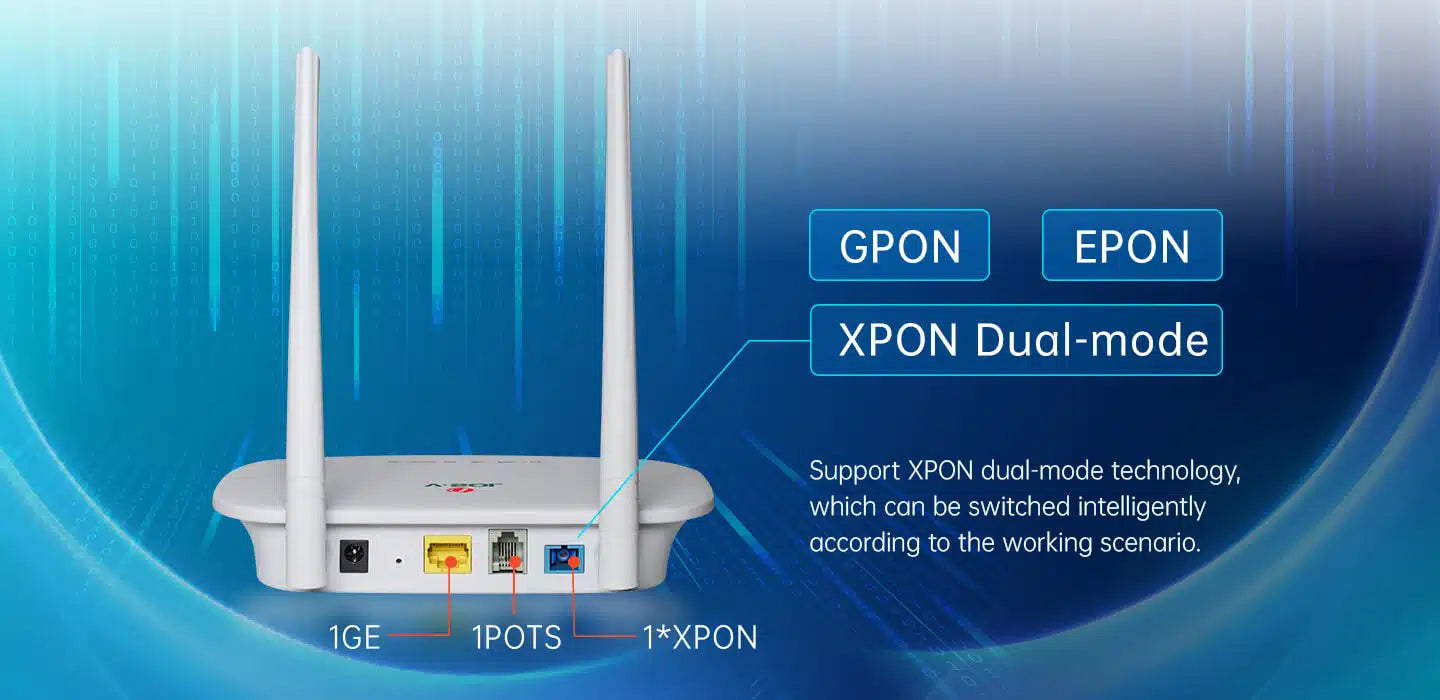

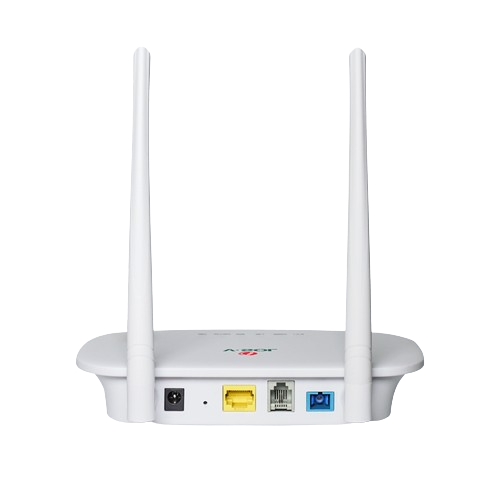

User interface	1GE,Auto-negotiation, RJ45 connectors 1POTS, RJ11 connectors

Function Data

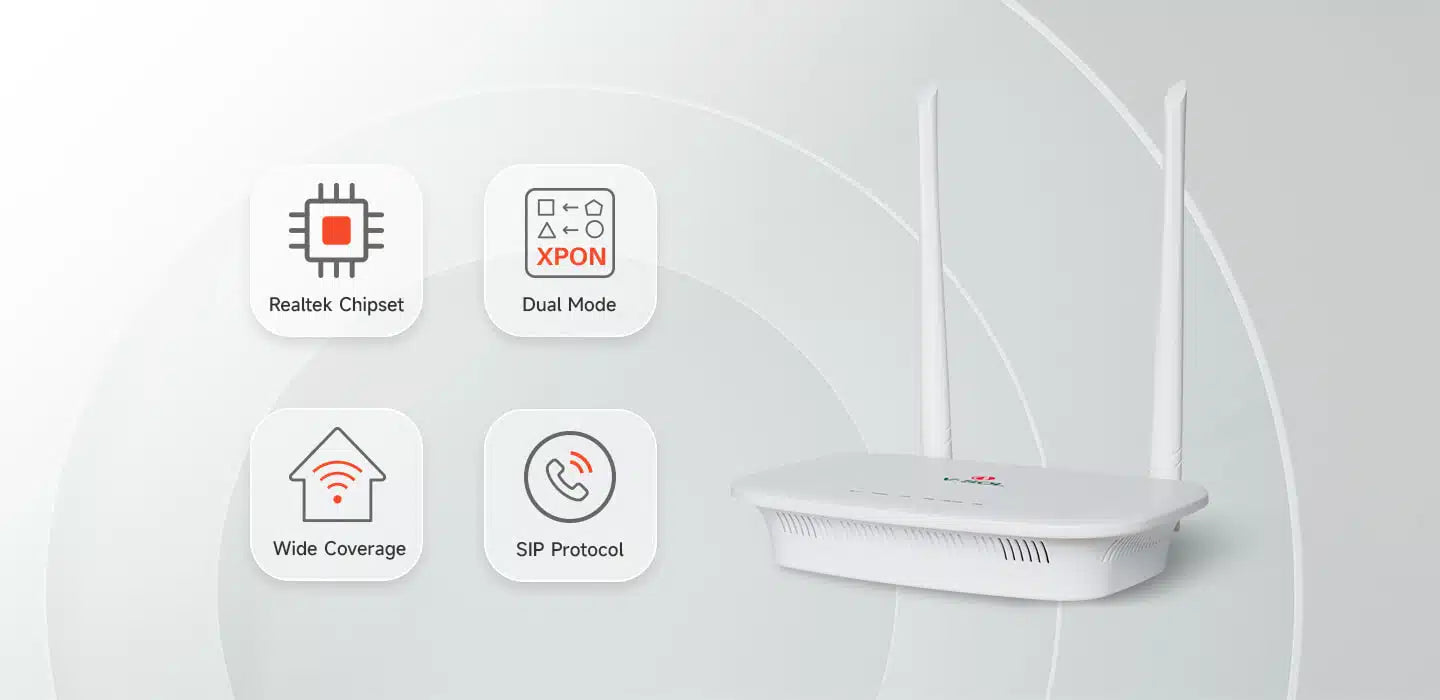

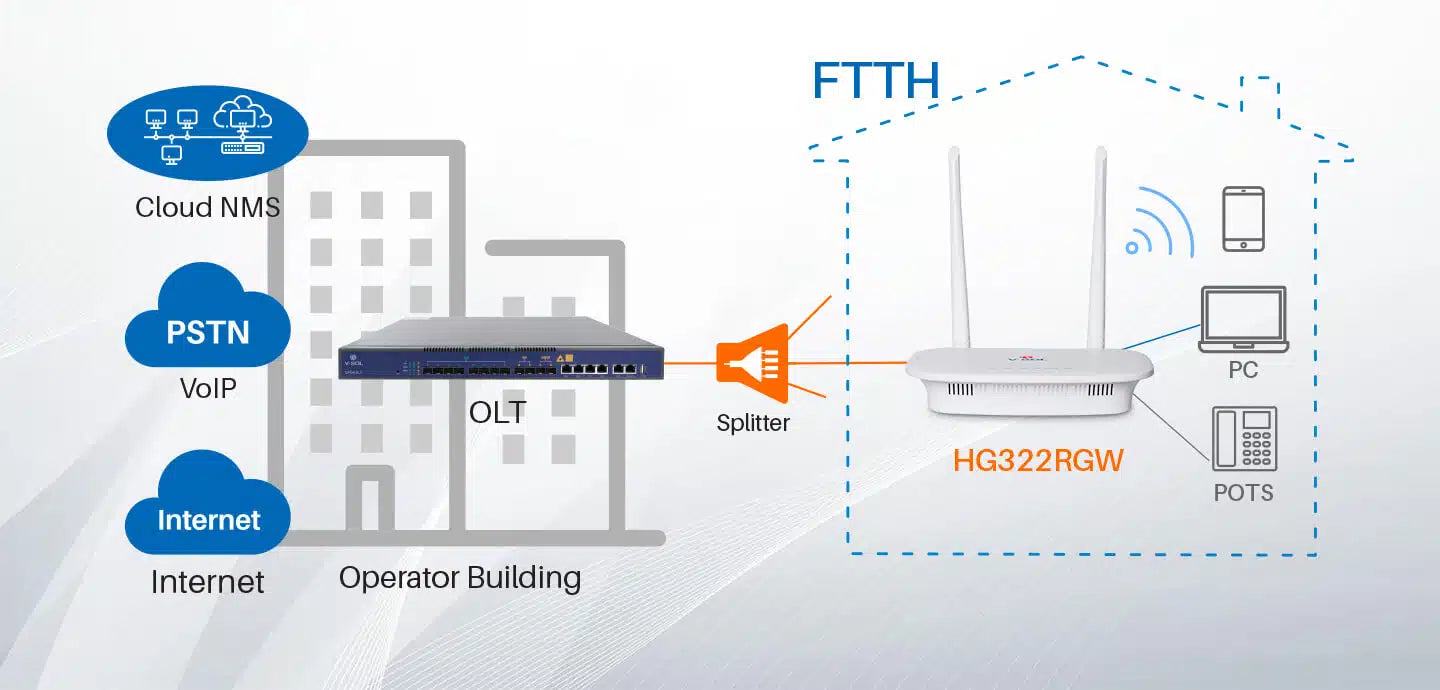

PON mode	Dual Mode , Can access EPON/GPON OLTs(HUAWEI,ZTE,FiberHome, etc).
Uplink mode	Bridging and Routing Mode.
Layer2	802.1D&802.1ad bridge,802.1p Cos, 802.1Q VLAN.
Layer3	IPv4/IPv6 , DHCP Client/Server , PPPoE，NAT , DMZ ,DDNS.
Multicast	IGMPv1/v2/v3 , IGMP snooping.
Security	Flow & Storm control, Loop Detection.
WiFi	Authentication:WEP/WAP-PSK(TKIP)/ WAP2-PSK(AES). Support: multiple SSID

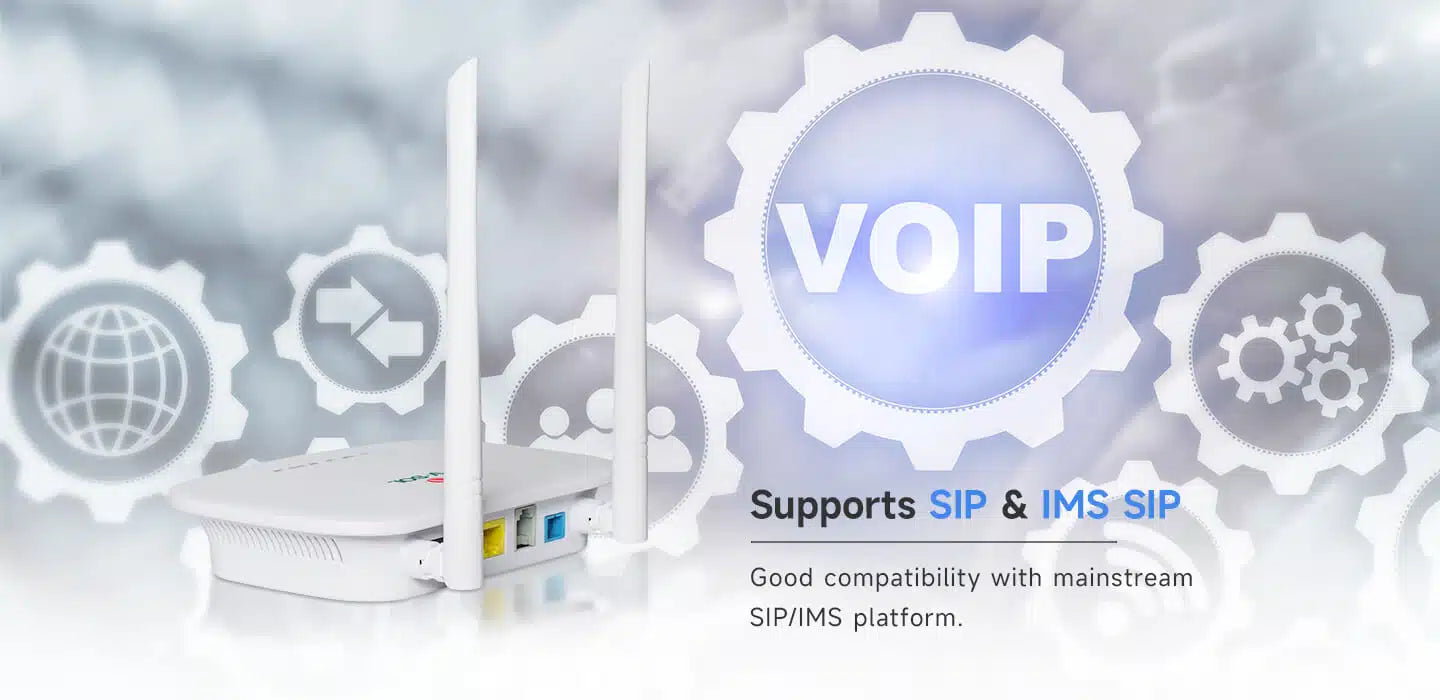

VoIP	SIP and IMS SIP G.711a/G.711u/G.722/G.729 Codec Echo cancellation,VAD/CNG,DTMF Relay T.30/T.38 FAX Caller Identification/Call Waiting/Call Forwarding /Call Transfer/Call Hold/3-way Conference Line testing according to GR-909
Firewall	Filtering Based on ACL/MAC/URL.

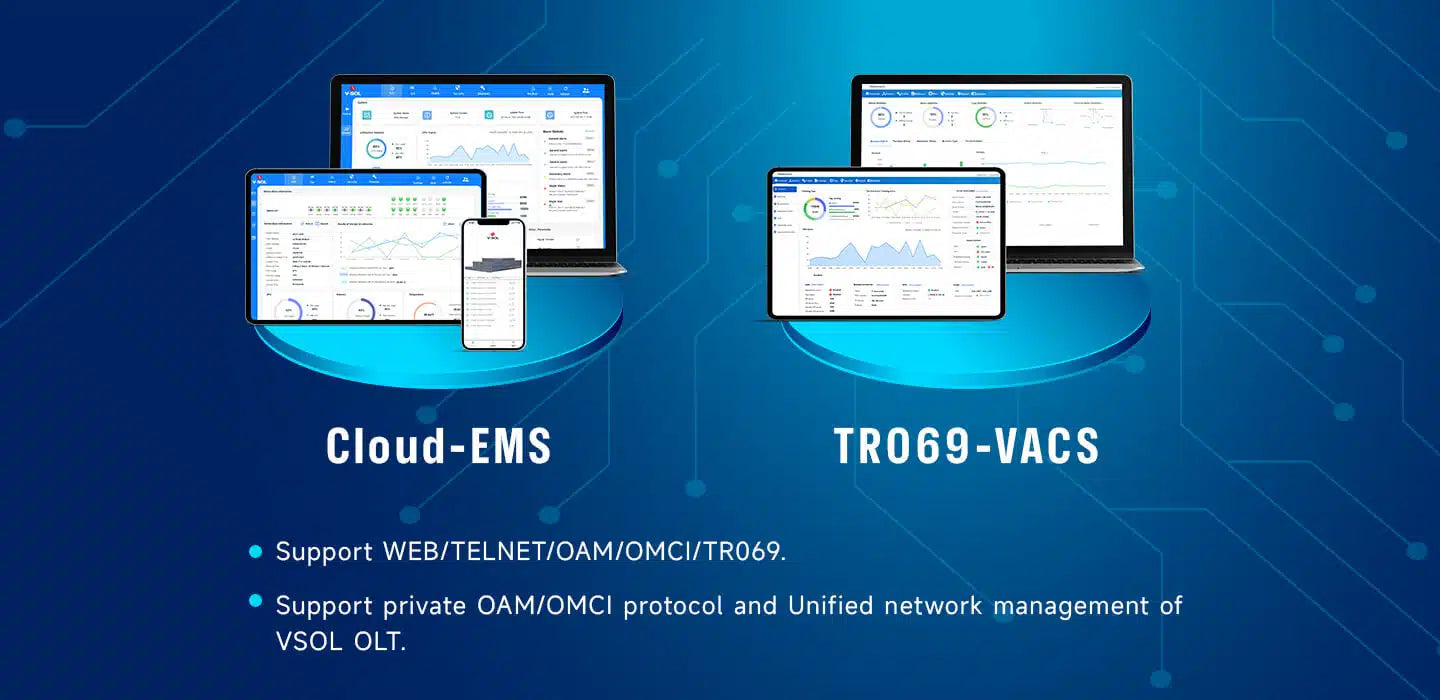

O&M	WEB/TELNET/OAM/OMCI/TR069, Support private OAM/OMCI protocol and Unified network management of VSOL OLT.
