V.SOL

1GE+3FE+CATV+WiFi ONU

Name: 1GE+3FE+CATV+WiFi ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2804RGWT , Spec: 1*GE+3FE+WiFi 4+CATV

Contact Now

DataSheet PDF

Description
Reviews

Specifications

Product Description

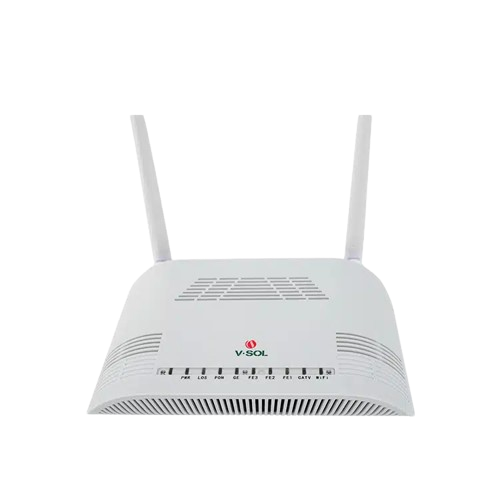

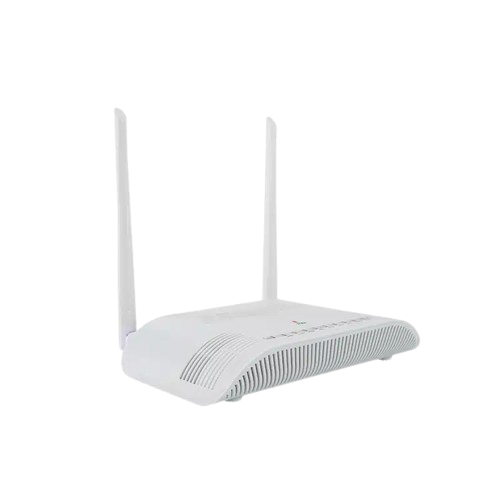

The V2804RGWT is a cutting-edge Optical Network Unit (ONU) device that offers a comprehensive and high-speed internet connectivity solution. With its advanced features and robust design, it is ideal for homes, small businesses, and enterprises.

Key Features:

1 Gigabit Ethernet (GE) port for high-speed internet access
3 Fast Ethernet (FE) ports for connecting multiple devices
WiFi 4 (802.11n) support for wireless connectivity
CATV (Community Antenna Television) support for cable television services
Compact and wall-mountable design for easy installation

Technical Specifications:

Model: V2804RGWT
Interface: 1 GE + 3 FE + WiFi 4 + CATV
WiFi Standards: 802.11n
Power Supply: DC 12V, 1A
Dimensions: 180mm x 120mm x 30mm
Operating Temperature: 0°C to 40°C
Humidity: 5% to 90% non-condensing

Benefits:

High-speed internet access with Gigabit Ethernet port
Multiple device connectivity with 3 Fast Ethernet ports
Wireless connectivity with WiFi 4
Support for cable television services with CATV
Compact and easy-to-install design

○ Hardware Parameter
Dimension	185mm×120mm×34mm(L×W×H)
Net weight	0.28Kg
Operating condition	Operating temp: 0 ~ +50°C Operating humidity: 10 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V, 1A, external AC-DC power adaptor
Power supply	≤7W

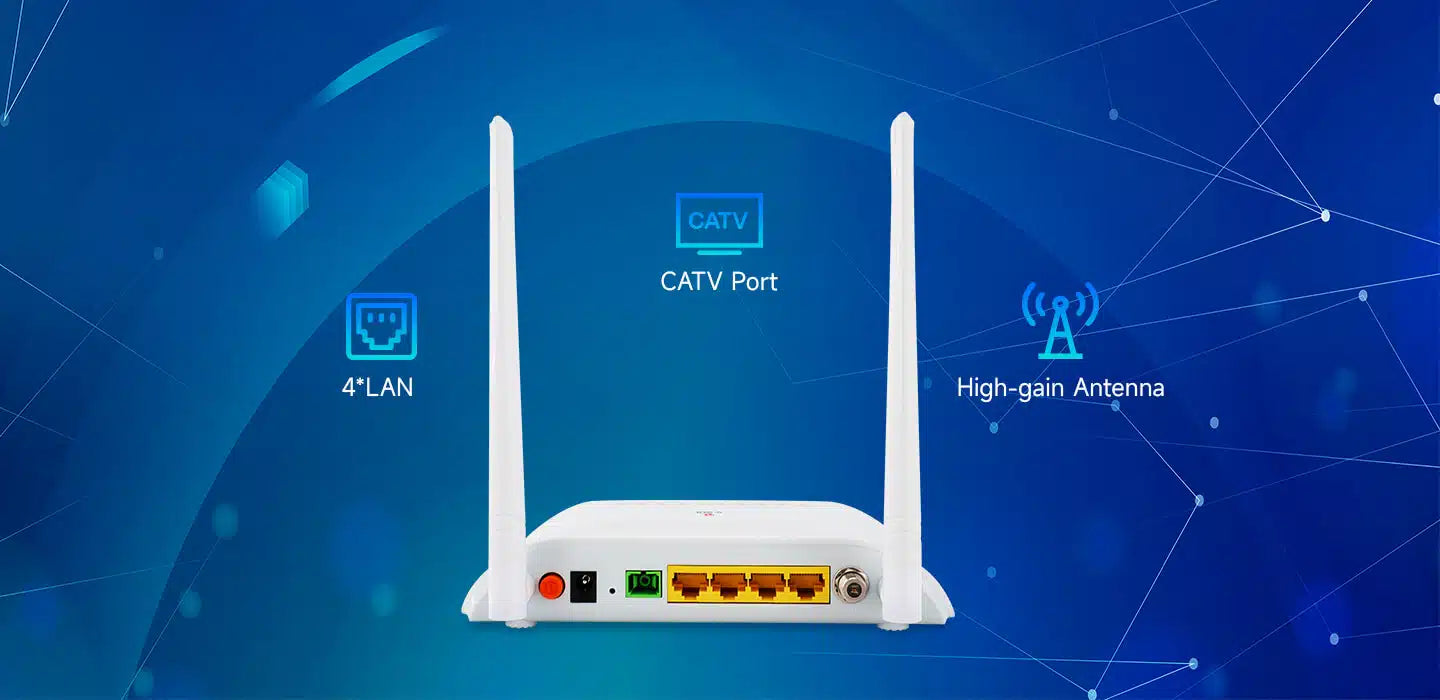

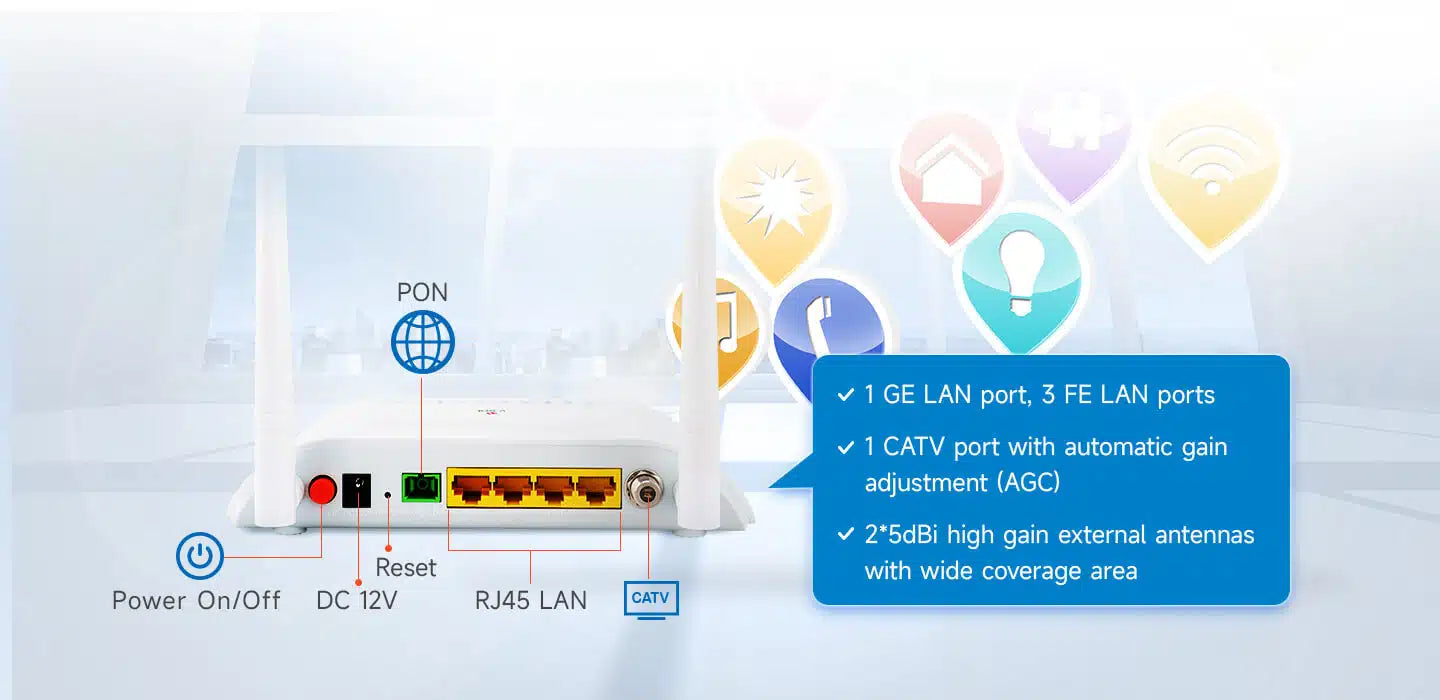

Interfaces	1GE+3FE+WiFi 4+CATV
Indicators	PWR, LOS, REG, LAN1~LAN4, WIFI, WAN, Pair, CATV

○ Interface parameter

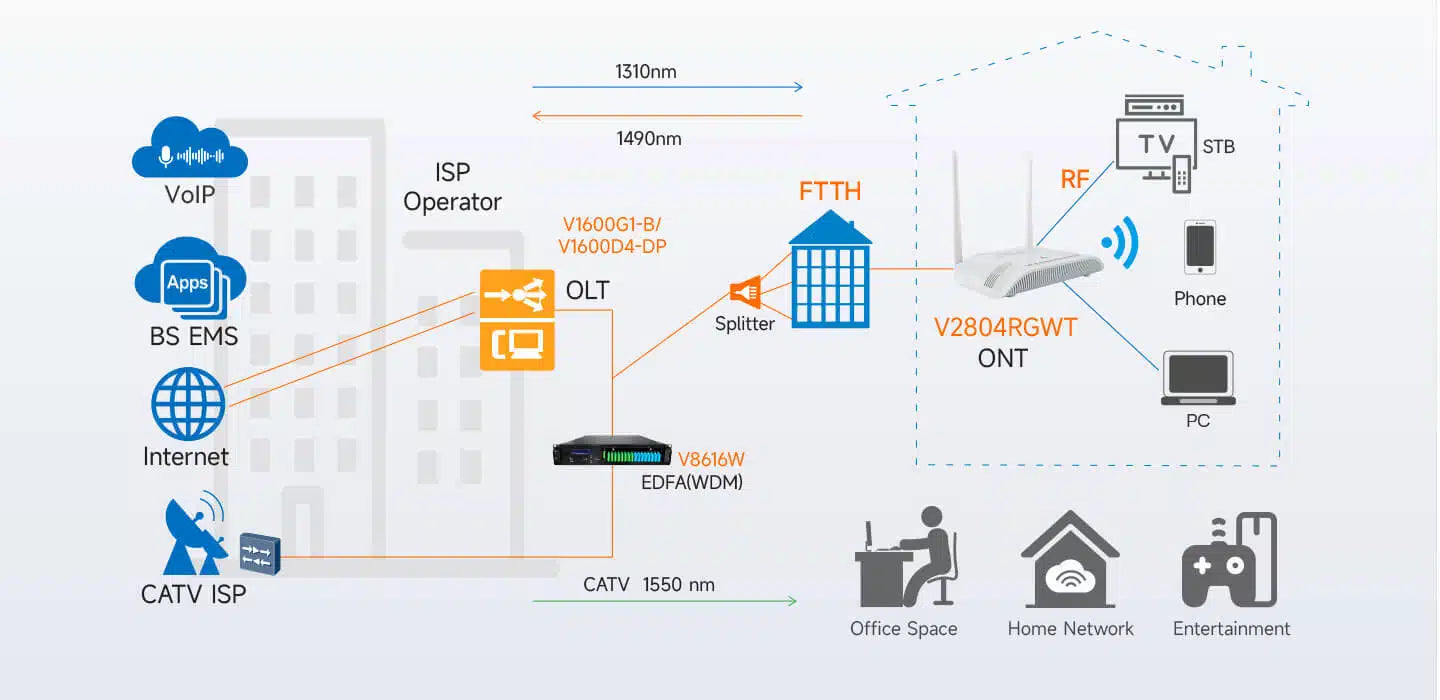

PON interface	1XPON port(EPON PX20+ and GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm(GPON) Transmission distance: 20KM Wavelength: TX 1310nm, RX 1490nm, CATV 1550nm
WIFI interface	Compliant with IEEE802.11b/g/n Rate up to 300Mbps, 2T2R, 5dBi external antenna Support: multiple SSID Support 13 Channels
LAN interface	1GE+3FE Auto-negotiation RJ45 ports
CATV interface	RF, optical power: +2 to -18dBm Optical reflection loss: ≥45dBm Optical receiving wavelength: 1550±10nm RF frequency range: 47~1000MHz, RF output impedance: 75Ω RF output level and AGC range: 83dbuv@0~-10dBm / 81dbuv@-1~-11dBm / 79dbuv@-2~-12dBm /77dbuv@-3~-13dBm / 75dbuv@-4~-14dBm / 73dbuv@-5~-15dBm MER: ≥32dB(-14dBm optical input), >35(-10dBm)

○ Function Data
XPON mode	Dual Mode, Can access EPON/GPON mainstream OLTs
Uplink mode	Bridging and Routing Mode
Firewall	Filtering Based on ACL/MAC/URL
Layer2	802.1D & 802.1ad bridge, 802.1p Cos, 802.1Q VLAN
Layer3	IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS
Multicast	IGMP v1/v2/v3, IGMP snooping
Security	Flow & Storm control, Loop Detection
O&M	WEB/TELNET/OAM/OMCI Support private OAM/OMCI protocol Unified network management of VSOL OLT
CATV	Support CATV Remote Control
WiFi	IEEE802.11b/g/n (TX power:17dBm/16dBm /15dBm), Up to 300Mbps Authentication:WEP/WAP-PSK(TKIP)/WAP2-PSK(AES)
