1GE+3FE POE XPON ONU Model: V2820D-1G3FPS Sepc: 1×XPON+1×GE(POE+)+3×FE(POE+)

V.SOL

V2820D-1G3FPS (1GE+3FE POE XPON ONU

Name: V2820D-1G3FPS (1GE+3FE POE XPON ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2820D-1G3FPS , Sepc: 1×XPON+1×GE(POE+)+3×FE(POE+)

Contact Now

DataSheet PDF

Description
Reviews

Description

Product

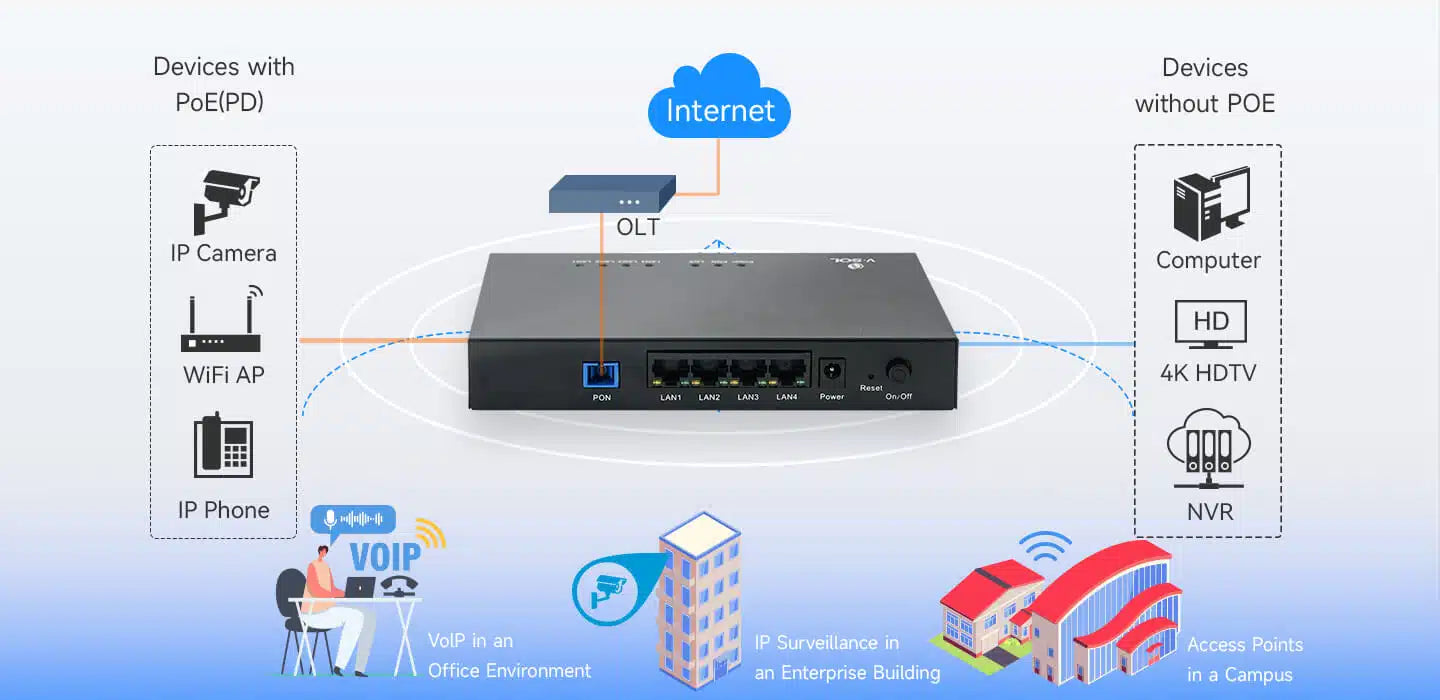

The V2820D-1G3FPS is a high-performance Optical Network Unit (ONU) device that offers a comprehensive and reliable internet connectivity solution. With its advanced features and robust design, it is ideal for homes, small businesses, and enterprises.

Key Features:

1 XPON port for high-speed optical connectivity
1 Gigabit Ethernet (GE) port with Power over Ethernet (PoE+) for powering devices
3 Fast Ethernet (FE) ports with PoE+ for connecting multiple devices
Compact and wall-mountable design for easy installation

Technical Specifications:

Model: V2820D-1G3FPS
Interface: 1 XPON + 1 GE (PoE+) + 3 FE (PoE+)
Power Supply: DC 12V, 1A
Dimensions: 180mm x 120mm x 30mm
Operating Temperature: 0°C to 40°C
Humidity: 5% to 90% non-condensing

Specifications

○ Hardware Parameter
Dimension	175mm×123mm×28mm（L×W×H）
Net weight	About 0.6kg
Operating condition	Temperature: -20°C ~ 50°C Operating humidity: 5 ~ 90% (non-condensed)
Storage condition	Storing temp: -30 ~ 60°C Storing humidity: 5 ~ 90% (non-condensed)
Power adapter	DC 48V, 1A
Power supply	≤ 48W

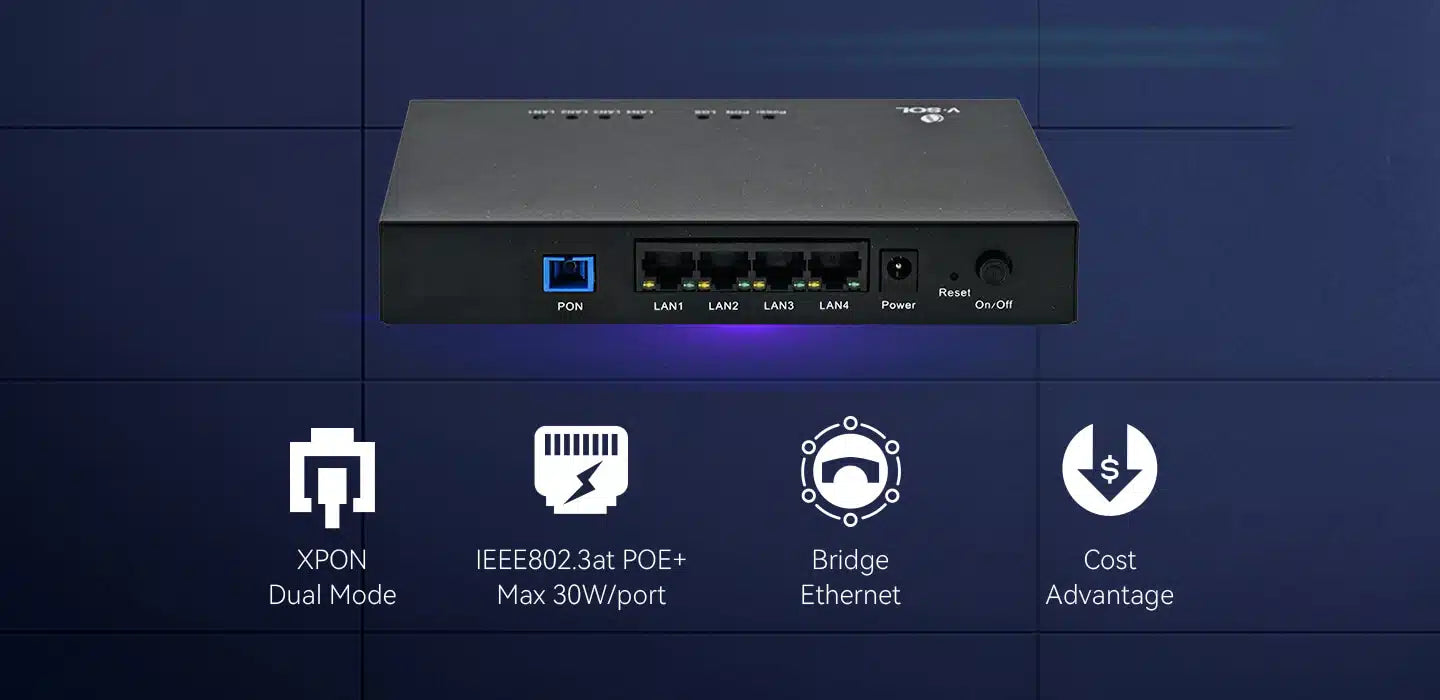

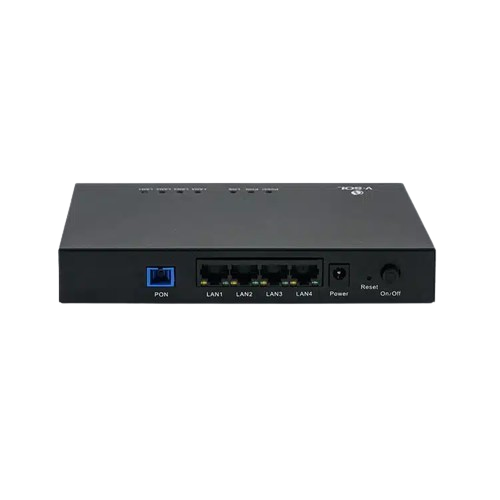

Interface	1×XPON+1×GE(POE+)+3×FE(POE+)
Indicators	7, POWER,LOS,PON, LAN1~LAN4

○ Interface parameter
PON Interface	1 XPON port(EPON PX20+ and GPON Class B+) SC Single Mode，Receiving sensitivity: ≤ 28dBm TX optical power: 0 ~ +4dBm RX sensitivity: -27 dBm Transmission distance: 20KM Downlink: 2.5/1.25Gbps uplink: 1.25Gbps
Wavelength	TX 1310nm, RX 1490nm
Optical Interface	SC/UPC connector

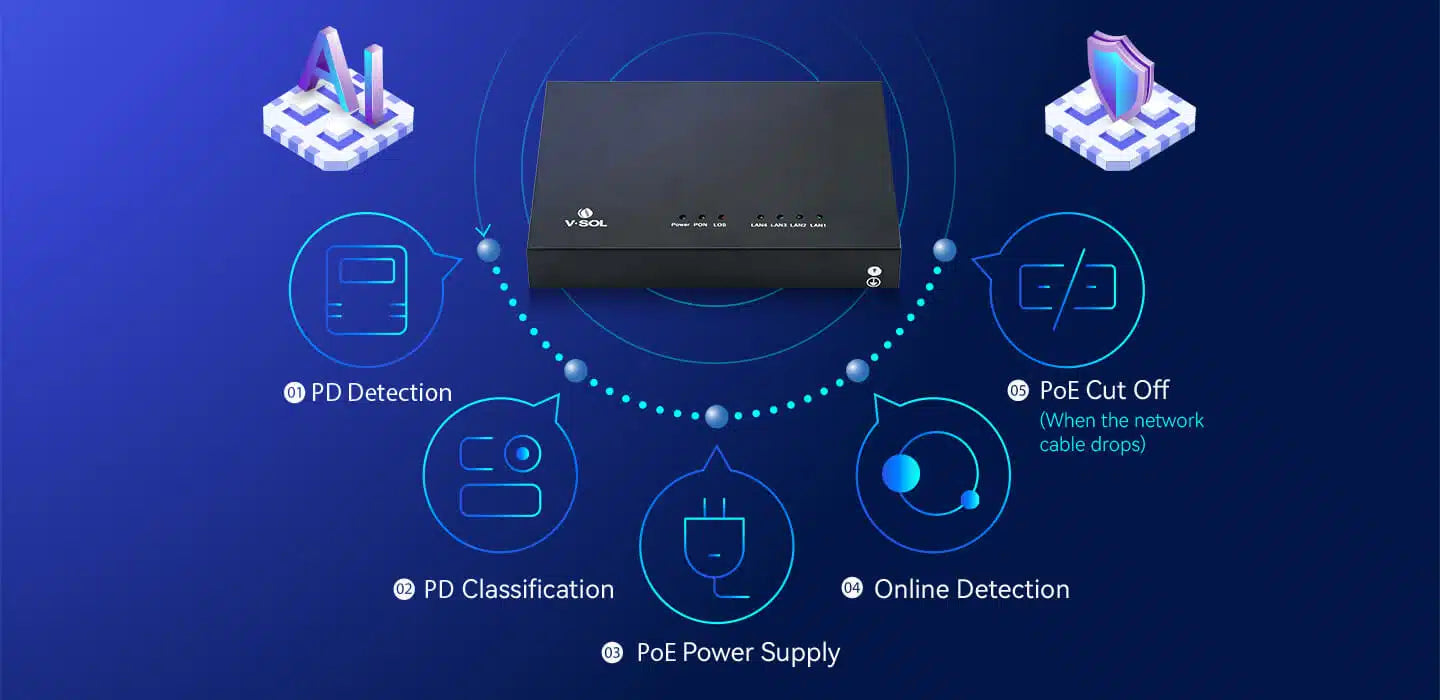

User Interface	PoE +, IEEE 802.3at, Max 30W per port 1×10/100/1000Mbps + 3×10/100Mbps auto adaptive Ethernet interfaces Full/Half, RJ45 connector Configuration of the number of MAC addresses learned Ethernet port-based VLAN transparent transmission and VLAN filtering

○ Function Data
Management	Support OMCI(ITU-T G.984.x) Support CTC OAM 2.0 and 2.1 Support Web/Telnet/CLI
SFU	Bridging mode Compatible with mainstream OLTs
L2	802.1D&802.1ad bridging 802.1p CoS 802.1Q VLAN
Multicast	IGMP v2/v3 IGMP snooping
