1GE+3FE+WiFi+USB ONU Model: V2804N Spec: 1*GE+3FE+WiFi 4

V.SOL

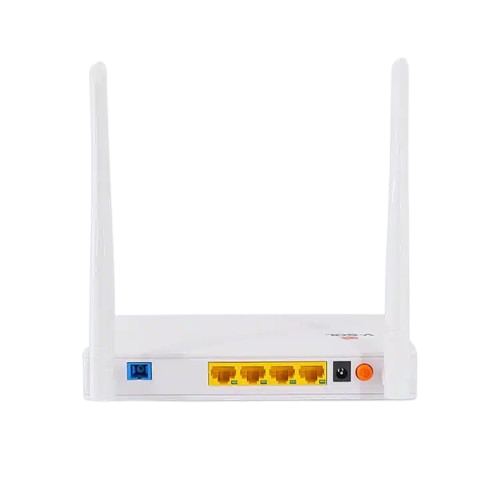

1GE+3FE+WiFi+USB ONU

Name: 1GE+3FE+WiFi+USB ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2804N , Spec: 1*GE+3FE+WiFi 4

Contact Now

DataSheet PDF

Description
Reviews

Description

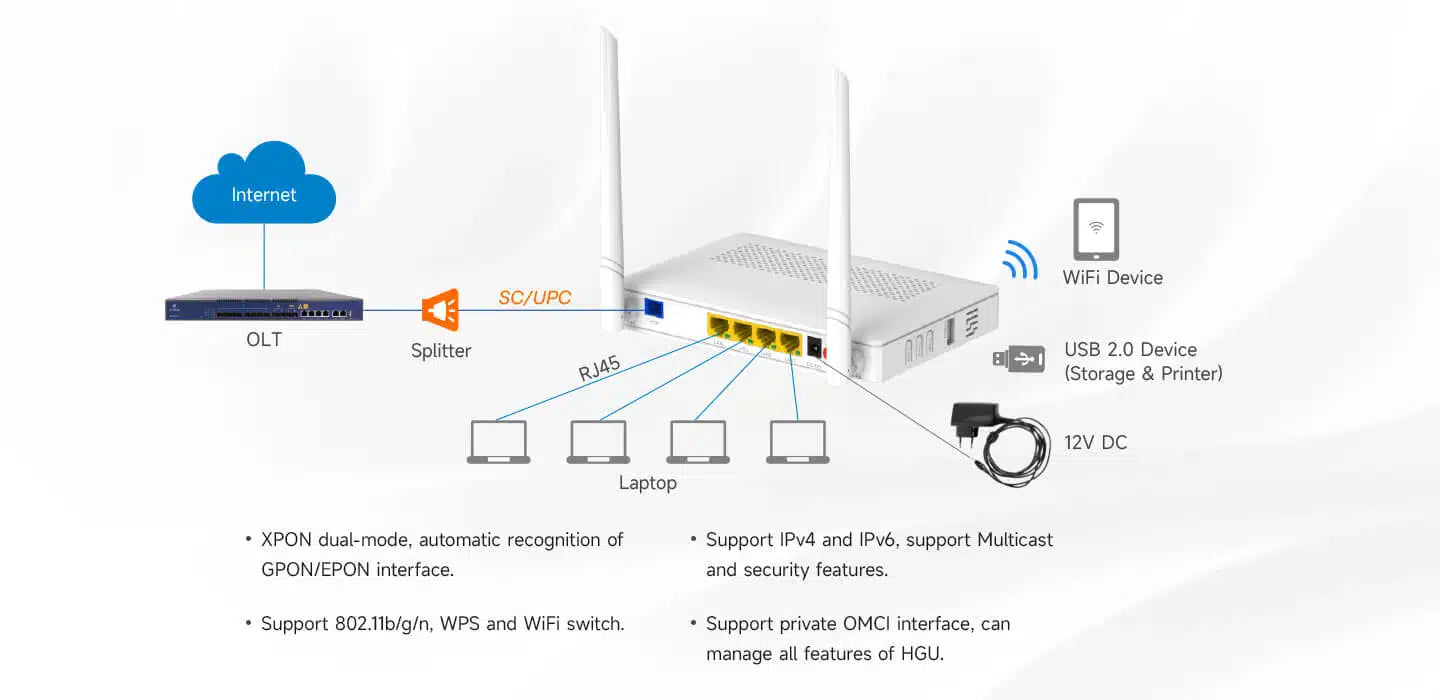

The V2804N is a versatile and feature-rich Optical Network Unit (ONU) device that offers a comprehensive and high-speed internet connectivity solution. With its advanced features and robust design, it is ideal for homes, small businesses, and enterprises.

Key Features:

1 Gigabit Ethernet (GE) port for high-speed internet access
3 Fast Ethernet (FE) ports for connecting multiple devices
WiFi 4 (802.11n) support for wireless connectivity
USB port for connecting external devices or charging
Compact and wall-mountable design for easy installation

Technical Specifications:

Model: V2804N
Interface: 1 GE + 3 FE + WiFi 4 + USB
WiFi Standards: 802.11n
Power Supply: DC 12V, 1A
Dimensions: 180mm x 120mm x 30mm
Operating Temperature: 0°C to 40°C
Humidity: 5% to 90% non-condensing

Specifications

○ Hardware Parameter
Dimension	205mm×140mm×37m(L×W×H)
Net weight	0.34Kg
Operating condition	Operating temp: 0 ~ +50°C Operating humidity: 5 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +75°C Storing humidity: 5 ~ 90% (non-condensed)
Power adapter	DC 12V, 1/1.5A, external AC-DC power adaptor
Power supply	≤10W
Interfaces	1GE+3FE+WiFi 4+USB 2.0
Indicators	PWR, PON, LOS, WAN, ETH1 ~ ETH4, WIFI, USB, WPS

○ Interface Parameter
PON interface	l 1XPON port(EPON PX20+ and GPON Class B+) l SC single mode, SC/UPC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm (GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm
WIFI interface	l Compliant with IEEE802.11b/g/n l Rate up to 300Mbps, 2T2R, 5dBi external antenna l Support: multiple SSID l Support 13 Channels
LAN interface	1GE+ 3FE Auto-negotiation RJ45 ports

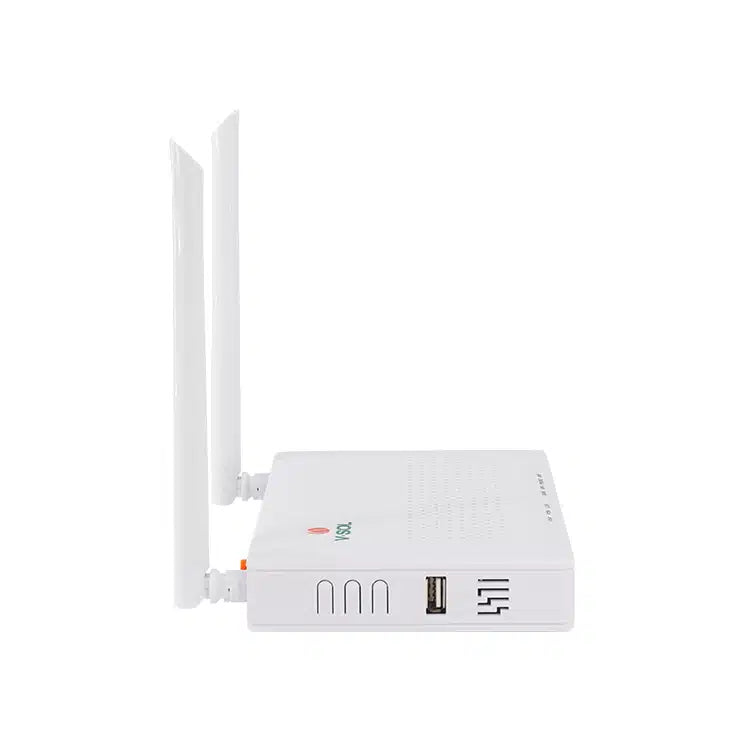

USB interface	USB 2.0 for Shared Storage/Printer

○ Function Data
XPON mode	Dual mode , Can access EPON/GPON OLTs (Mainstream Brand OLT)
Uplink mode	Routing mode
Firewall	DDOS, Filtering Based on ACL/MAC/URL
Layer2	IEEE 802.1D&802.1ad bridge, 802.1p Cos, 802.1Q VLAN
Layer3	IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS
Multicast	IGMP v1/v2/v3 , IGMP snooping
Security	Flow & Storm control, Loop Detection
O&M	l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol l Unified network management of VSOL OLT
