1GE+CATV ONU Model: V2801D-1GT1 Spec: 1*GE+CATV

V.SOL

1GE+CATV ONU

Name: 1GE+CATV ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2801D-1GT1 , Spec: 1*GE+CATV

Contact Now

DataSheet PDF

Description
Reviews

Description

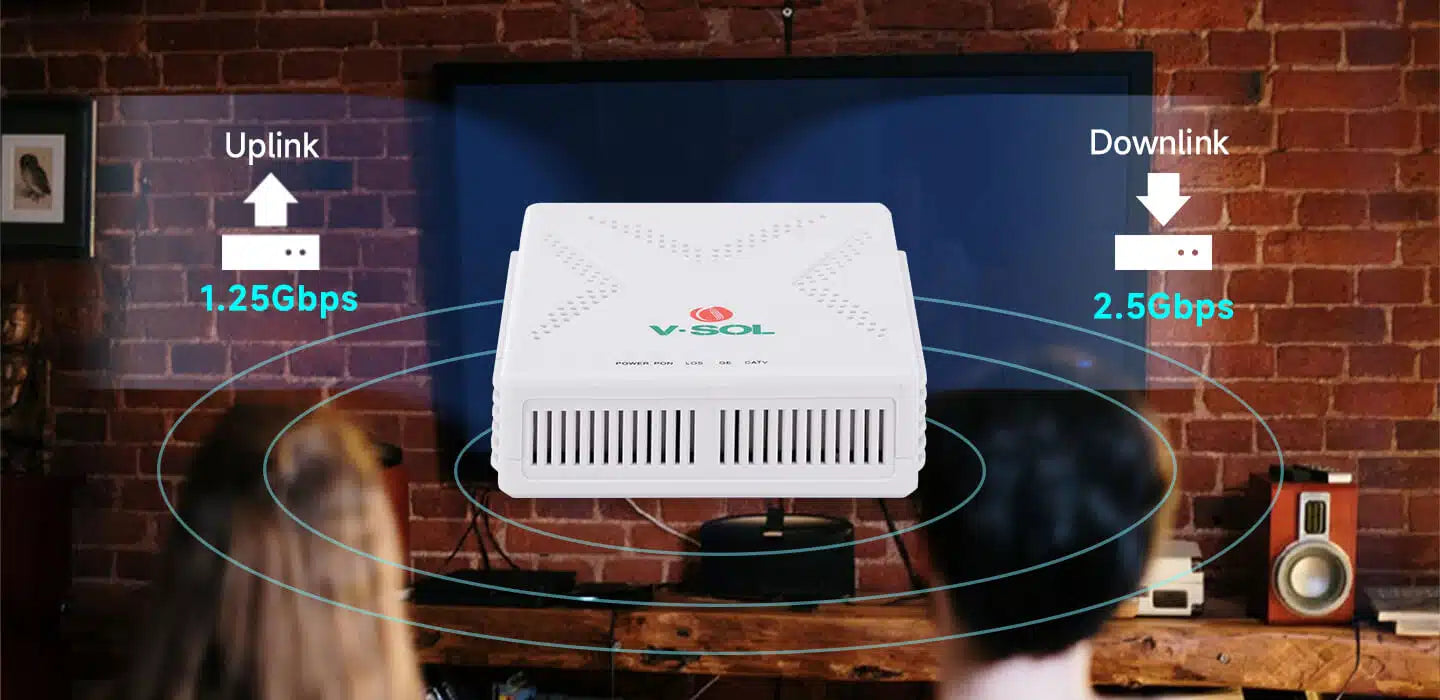

Product Description: V2801D-1GT1 ONU

The V2801D-1GT1 ONU (Optical Network Unit) is a cutting-edge device that combines high-speed internet connectivity with CATV (Cable Television) capabilities in a single unit. This ONU is perfect for homes and small businesses seeking a reliable and versatile networking solution.

Key Features:

1 Gigabit Ethernet Port: High-speed internet connectivity for devices
CATV: Supports cable television services, enabling access to TV programming and other multimedia content

Product Specifications:

Model: V2801D-1GT1
Type: 1GE+CATV ONU
Specification: 1*GE+CATV

This ONU is designed to provide a robust and reliable internet connection, cable television services, and a versatile networking solution, making it an ideal choice for those seeking a high-performance and feature-rich device.

Specifications

○ Hardware Parameter
Dimension	100mm×92mm×30mm(L×W×H)
Net weight	130g
Operating condition	Operating Temp: -10 ~ +55°C Operating Humidity: 5 ~ 95%(non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Power supply	≤4.2W

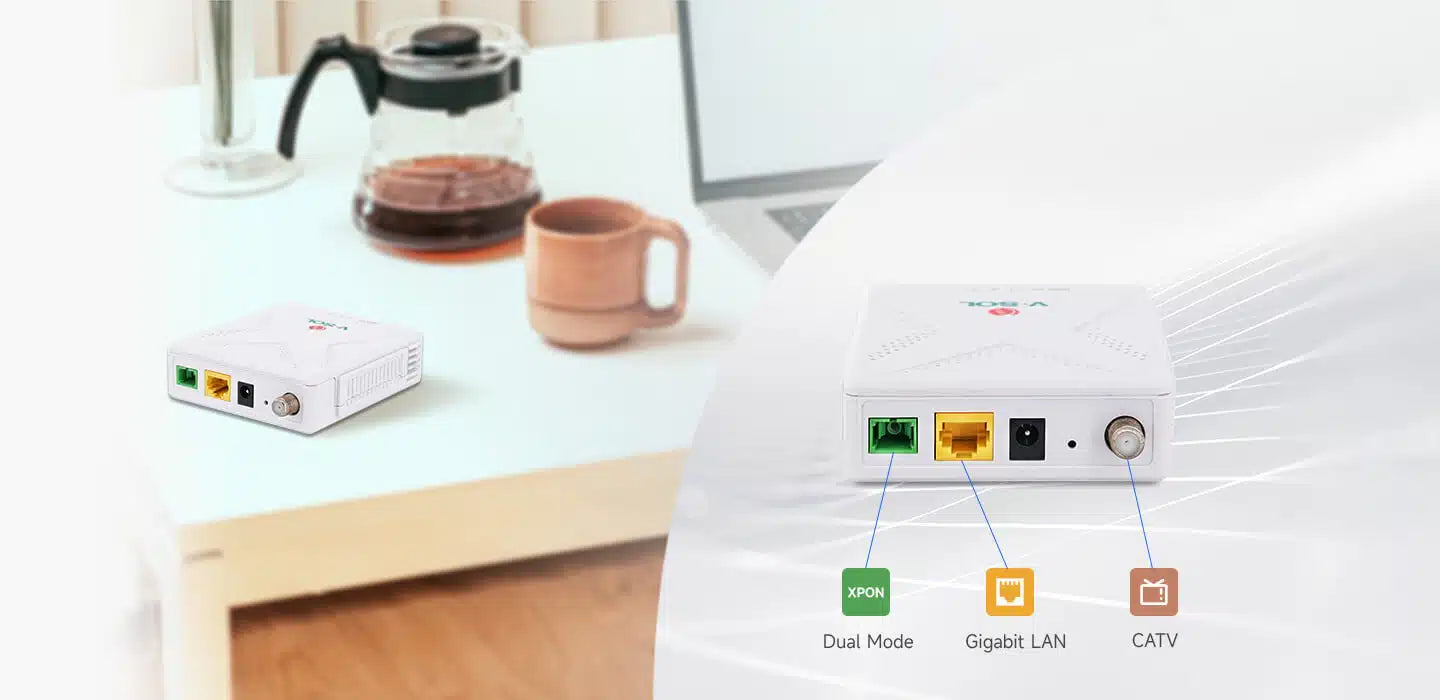

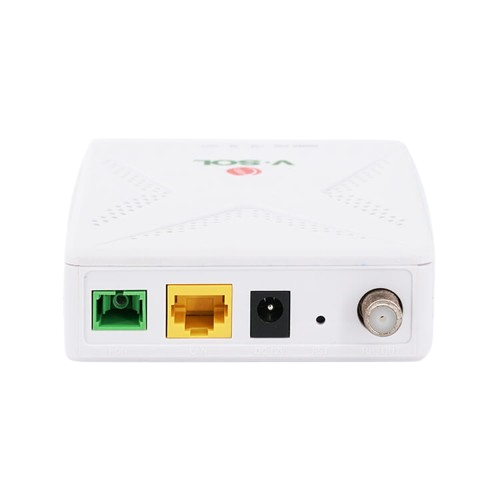

Interface	1GE+CATV

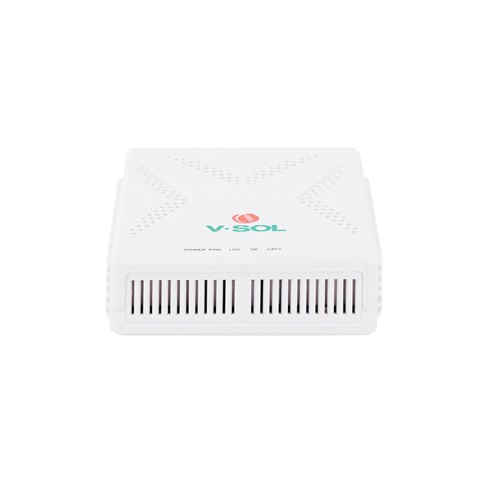

Indicators	POWER, LOS, PON, LAN, CATV

○ Interface parameter

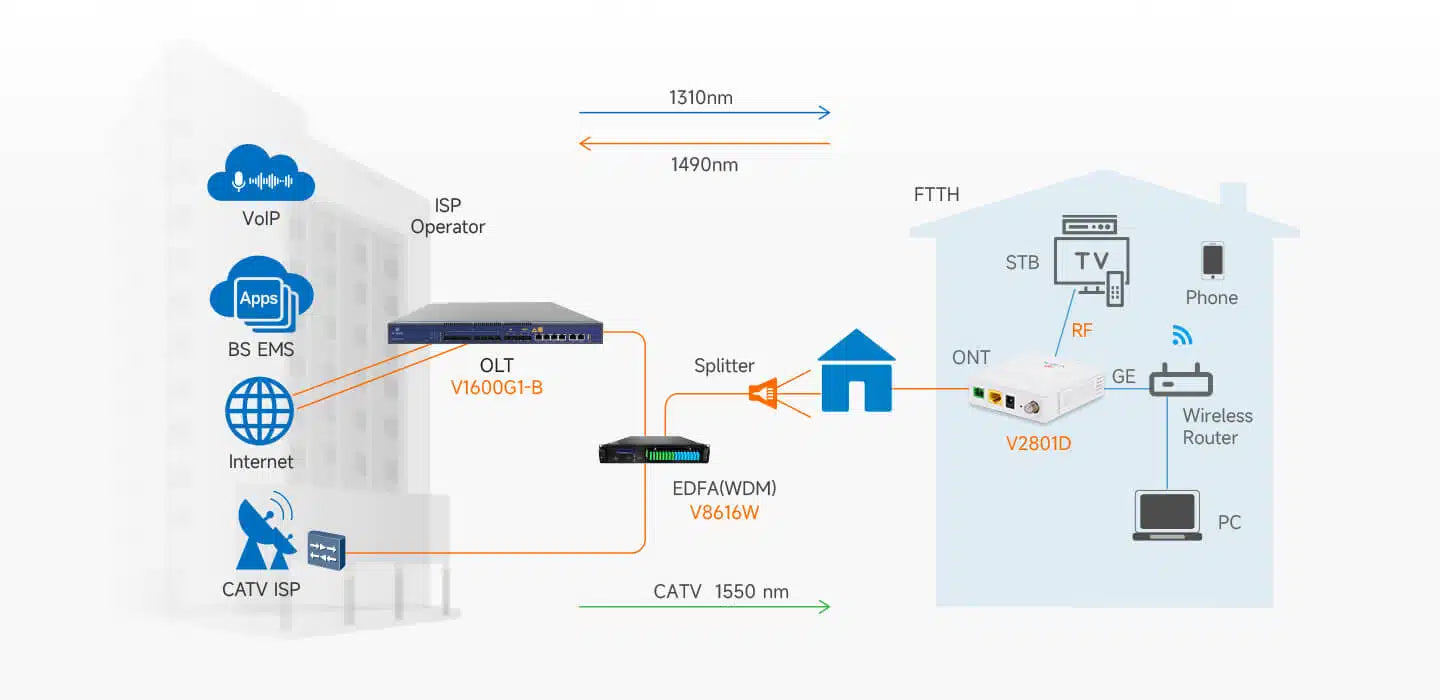

PON interface	l 1XPON port(EPON PX20+ and GPON Class B+) l SC single mode, SC/APC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm, CATV 1550nm
LAN interface	1*GE Auto-negotiation RJ45 ports

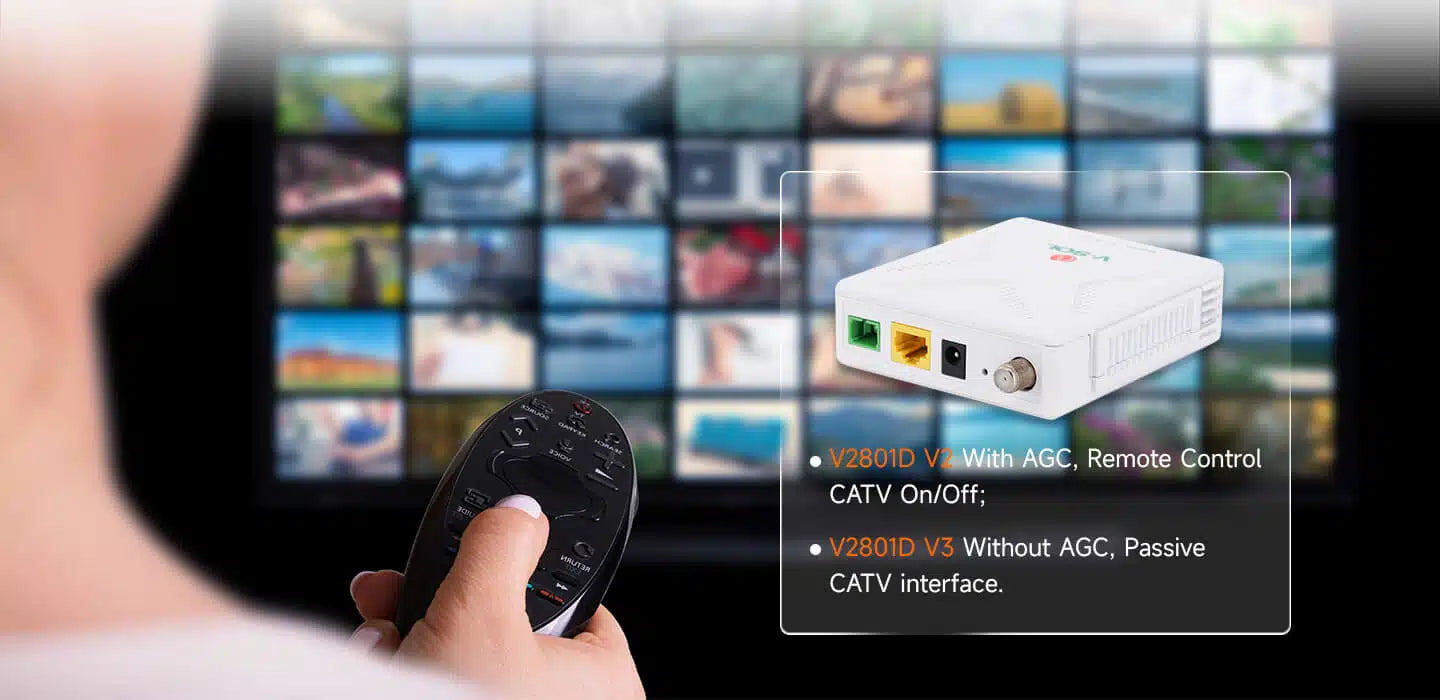

CATV interface	V2801D V2: l RF Optical power : +2～-18dBm l Optical receiving wavelength: 1550±10nm l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level: ≥ 70dBuV(0～-15dBm) l AGC range: 0～-15dBm l MER: ≥32dB(-14dBm optical input)	V2801D V3: l RF Optical power : 0～-3dBm l Optical receiving wavelength: 1550±10nm l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level: ≥ 60dBuV（0~-3dBm） l AGC range: not support l MER: ≥32dB(0~-3dBm optical input)

○ Function Data
PON Mode	XPON Dual Mode
Uplink Mode	Bridging and Routing Mode Well connect with OLTs of mainstream
CATV	Support CATV Rmote management
Standard	l Support CTC OAM 2.1 and 3.0 l Support ITUT984.x OMCI
Layer2	l 802.1D & 802.1ad bridging l 802.1p CoS l 802.1Q VLAN
Layer3	l IPv4 l DHCP Client/Server l PPPoE, NAT, DMZ, DDNS
Multicast	IGMP v2/v3, IGMP snooping
Security and Firewall	l Prevent Rogue ONU l DDOS, Filtering Based on ACL/MAC/URL
O&M	Support EMS\WEB\Telnet\CLI and unified network management of VSOL OLT
