V.SOL

V2801RGW (1GE+WiFi ONU

Name: V2801RGW (1GE+WiFi ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2801RGW Spec: 1*GE+WiFi4

Contact Now

DataSheet PDF

Description
Reviews

Description

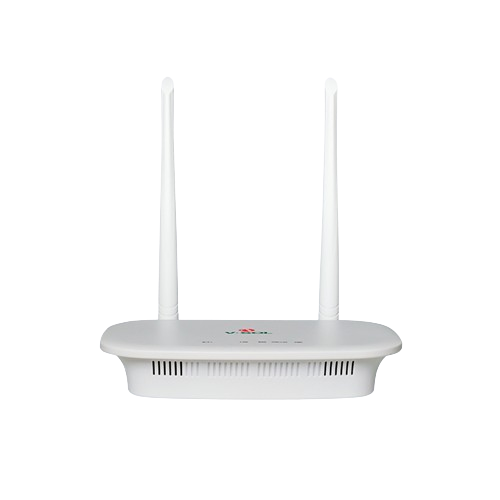

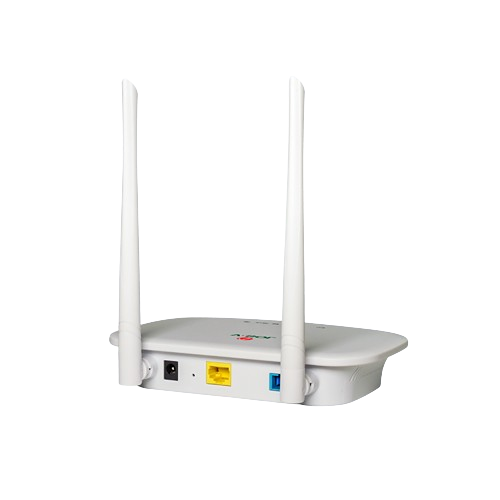

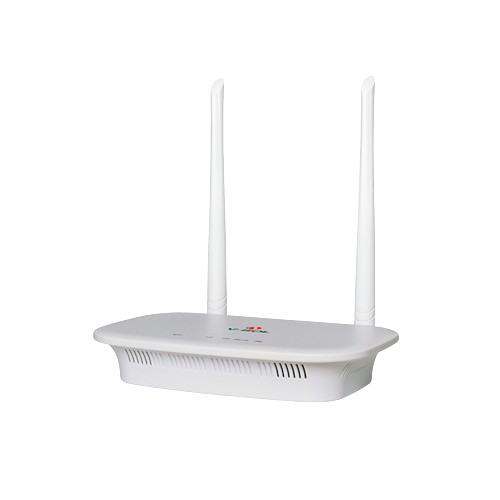

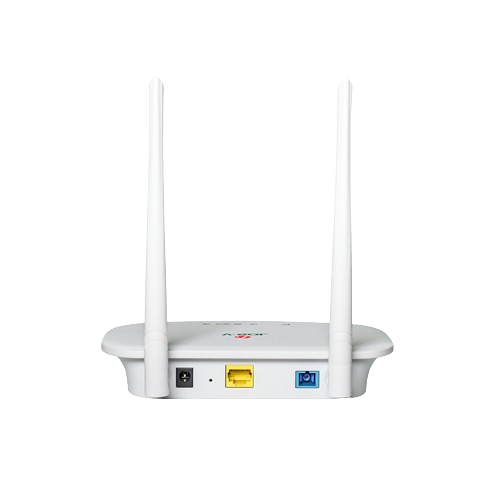

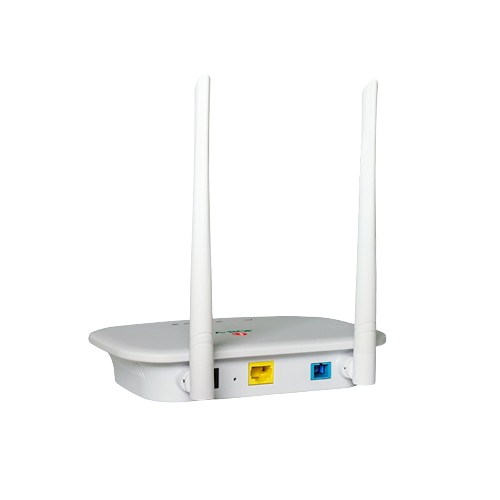

Product Description: V2801RGW ONU

The V2801RGW ONU (Optical Network Unit) is a versatile and compact device that combines high-speed internet connectivity with wireless capabilities. This ONU is perfect for homes and small businesses seeking a reliable and flexible networking solution.

Key Features:

1 Gigabit Ethernet Port: High-speed internet connectivity for devices
WiFi: Wireless connectivity for devices, enabling flexible networking
4 WiFi Antennas: Enhanced wireless coverage and stability

Product Specifications:

Model: V2801RGW
Type: 1GE+WiFi ONU
Specification: 1*GE+WiFi 4

This ONU is designed to provide a robust and reliable internet connection, making it an ideal choice for those seeking a versatile and high-performance networking solution.

Specifications

○ Hardware Parameter
Dimension	120mm×78mm×30m(L×W×H)
Net weight	0.15Kg
Operating condition	Operating temp: 0 ~ +50°C Operating humidity: 10~90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 10 ~ 90% (non-condensed)
Power adapter	DC 12V, 0.5A, external AC-DC power adaptor
Power supply	≤ 6W
Interfaces	1GE+WiFi4

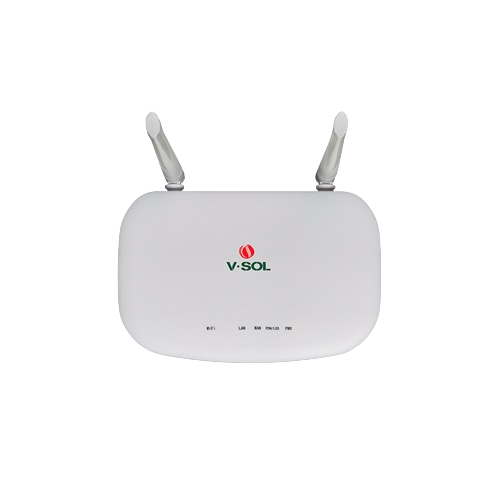

Indicators	POWER, LOS, PON, LAN, WiFi

○ Interface parameter
PON interface	1 XPON port(EPON PX20+ & GPON Class B+) SC single mode, SC/UPC connector TX optical power: 0～+4dBm RX sensitivity: -27dBm Overload optical power: -3dBm(EPON) or -8dBm (GPON) Transmission distance: 20KM
LAN interface	1*GE Auto-negotiation RJ45 ports
WiFi interface	IEEE802.11b/g/n(TX power:17dBm/16dBm/ 15dBm),300Mbps Support 13 Channels

○ Function Data

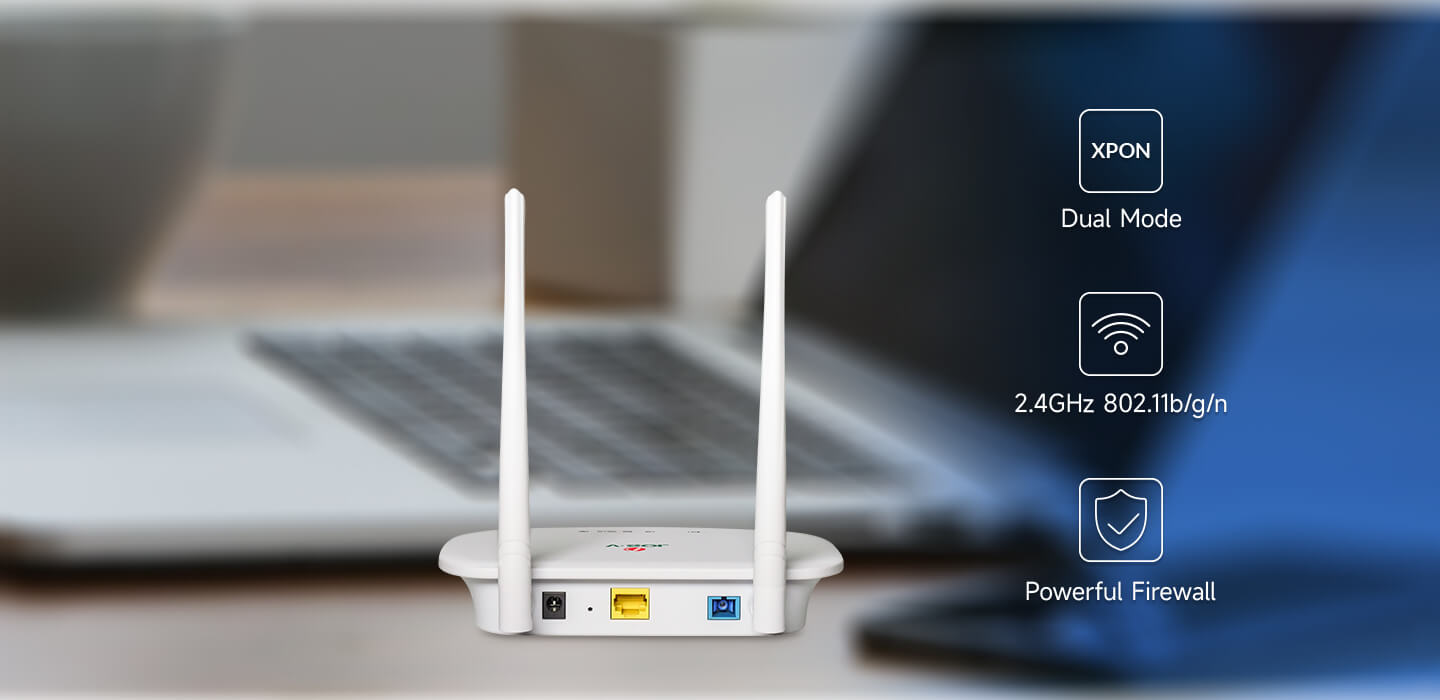

PON mode	XPON Dual mode , Can access to mainstream EPON/GPON OLTs
Software mode	Routing mode
WiFi	WiFi Authentication: WEP/WAP-PSK(TKIP) /WAP2-PSK(AES) Support: multiple SSID
Firewall	DDOS, Filtering Based on ACL/MAC/ URL.
Layer2	802.1D & 802.1ad bridge, 802.1p Cos, 802.1Q VLAN.
Layer3	IPv4/IPv6, DHCP Client/Server, PPPoE, NAT , DMZ ,DDNS.
Multicast	IGMP v1/v2/v3 , IGMP snooping
Security	Flow & Storm control, Loop Detection
O&M	WEB/TELNET/OAM/OMCI/TR069
