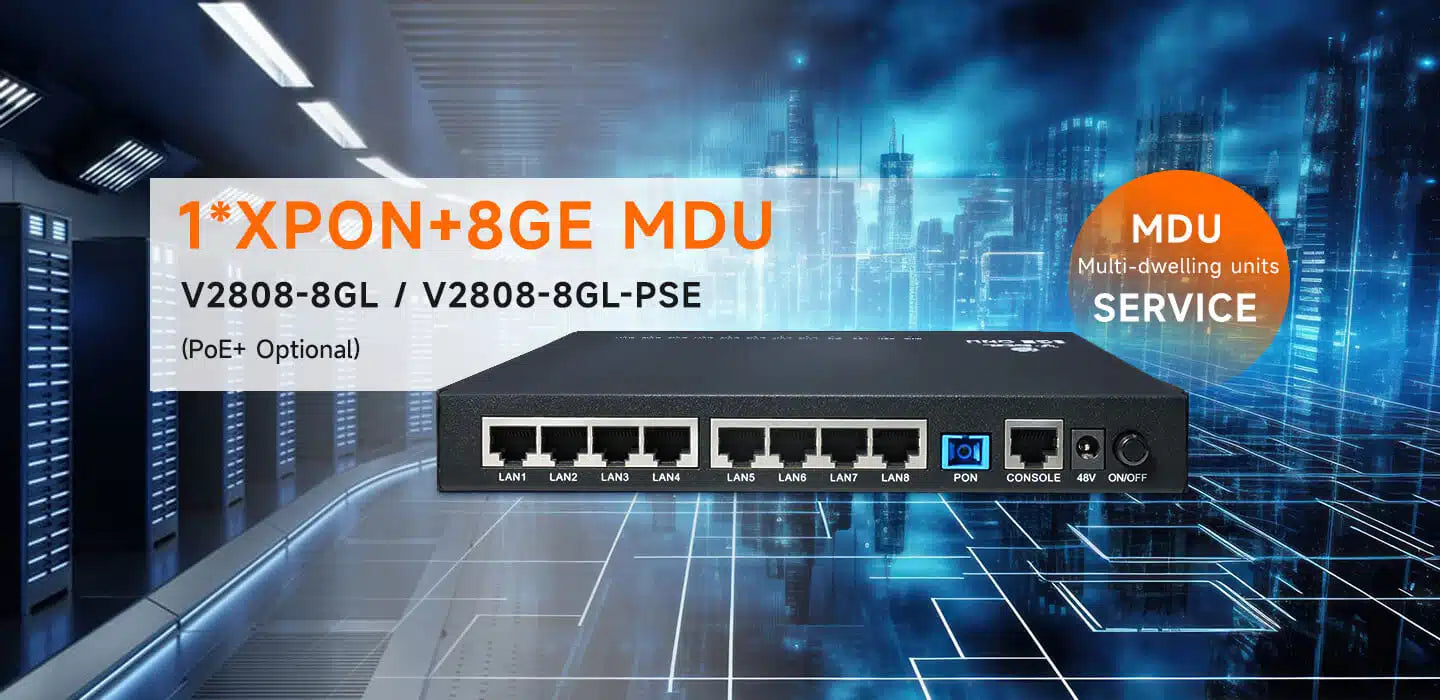

1XPON+8GE MDU ONU Model: V2808-8GL Spec: 1*XPON+8GE

V.SOL

1XPON+8GE MDU ONU

Name: 1XPON+8GE MDU ONU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: V2808-8GL , Spec: 1*XPON+8GE

Contact Now

DataSheet PDF

Description
Reviews

Description

Product Description: V2808-8GL MDU ONU

The V2808-8GL MDU (Multi-Dwelling Unit) ONU (Optical Network Unit) is a high-performance device that provides reliable and secure internet connectivity to multiple users or devices. This MDU ONU is perfect for apartment buildings, condominiums, and other multi-tenant environments seeking a robust and cost-effective networking solution.

Key Features:

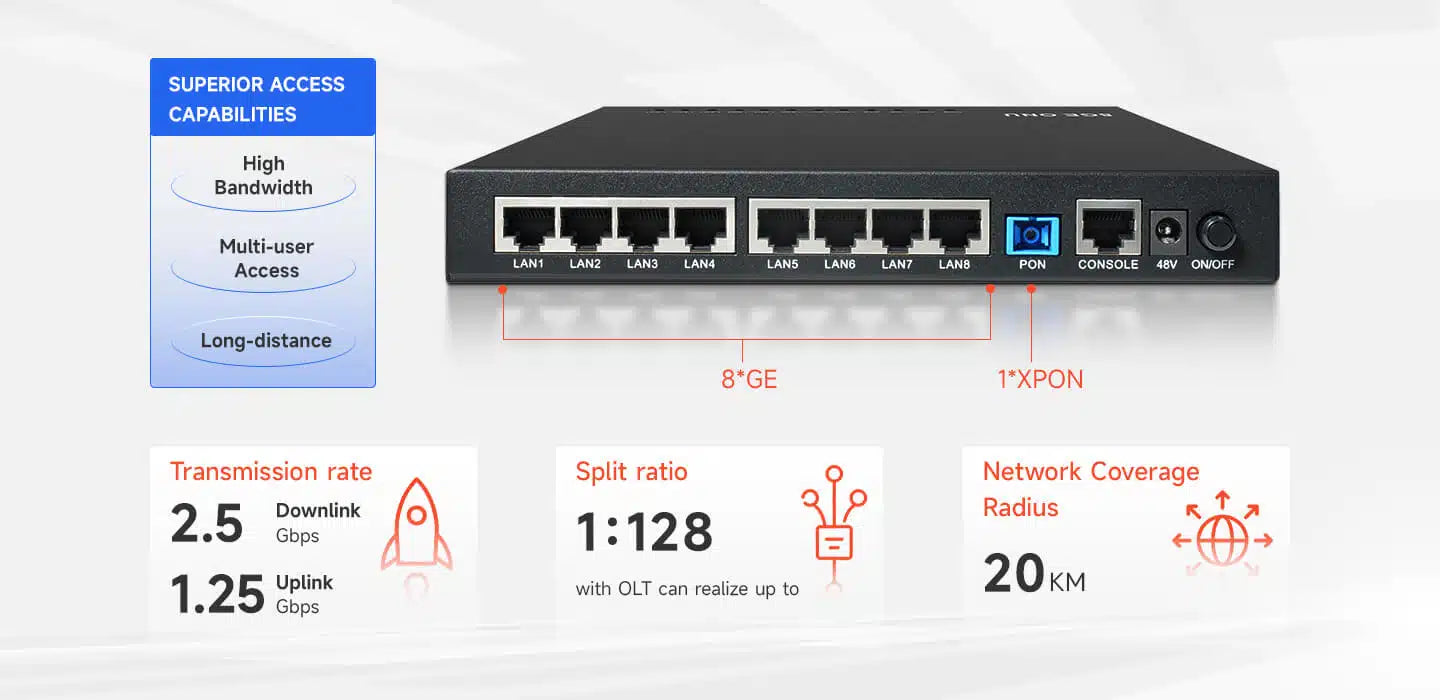

1 XPON Port: High-speed internet connectivity over fiber-optic networks
8 Gigabit Ethernet Ports: High-speed connectivity options for multiple devices or users

Product Specifications:

Model: V2808-8GL
Type: 1XPON+8GE MDU ONU
Specification: 1*XPON+8GE

This MDU ONU is designed to provide a robust and reliable internet connection, with multiple Gigabit Ethernet ports for flexible and high-speed connectivity, making it an ideal choice for multi-tenant environments seeking a high-performance and cost-effective device.

Specifications

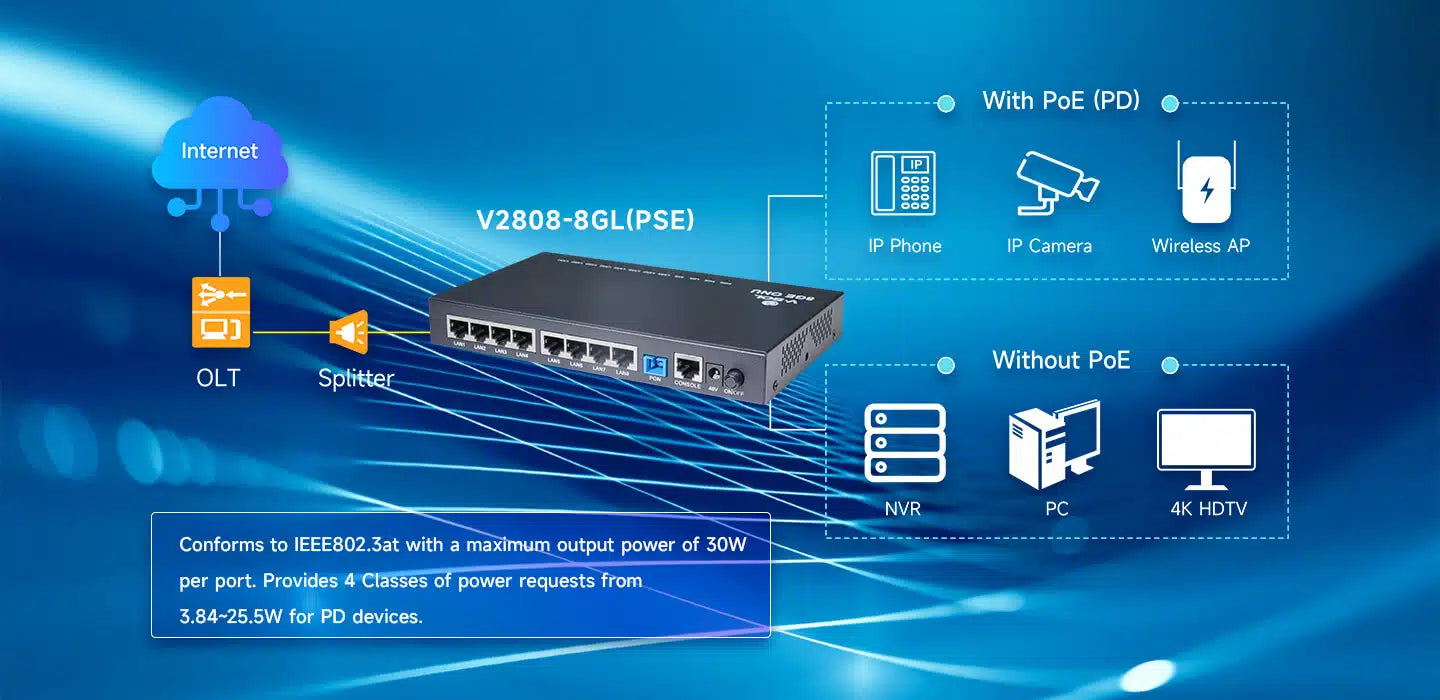

V2808-8GL（PSE） XPON MDU
ITEMS		V2808-8GL	V2808-8GL (PSE)
PON INTERFACE	Receiver Sensitivity	≤28dBm
	TX Optical Power	0~+4dBm
	Transmission Distance	20KM
	Wavelength	TX 1310nm, RX1490nm
	Optical Interface	SC/UPC Connectors

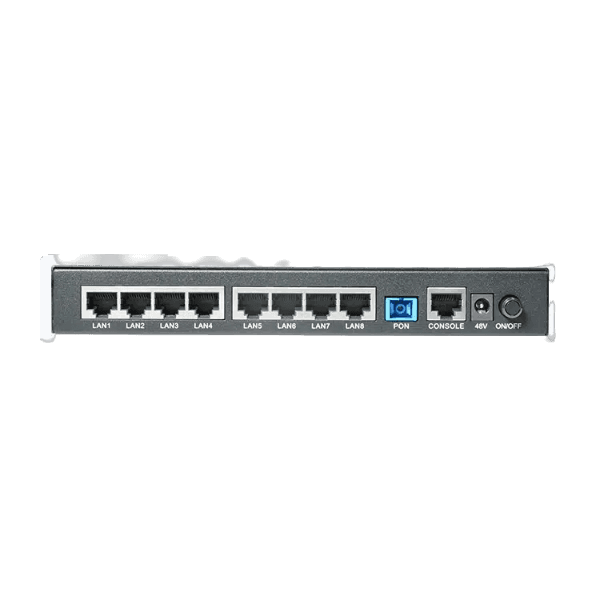

LAN INTERFACE	Quantities	8×GE	8 x GE (PoE)
	Speed	GE:10/100/1000mBPS adaptive ethernet interface, RJ45 Connector PoE:IEEE802.3af PoE
OPERATING CONDITION		Temp: -10 ~ +55°C; Humidity: 10 ~ 90% (non-condensing)
OPERATING VOLTAGE		DC 12V/1A, external power adapter	DC 54V/2.4A, external power adapter
POWER WASTAGE		<12W (without PoE supply), ≤130W (with PoE supply)
SIZE(L×W×H)		205mm×125mm×28mm
WEIGHTS		<650g (with power adapter)	<1200g (with power adapter)
