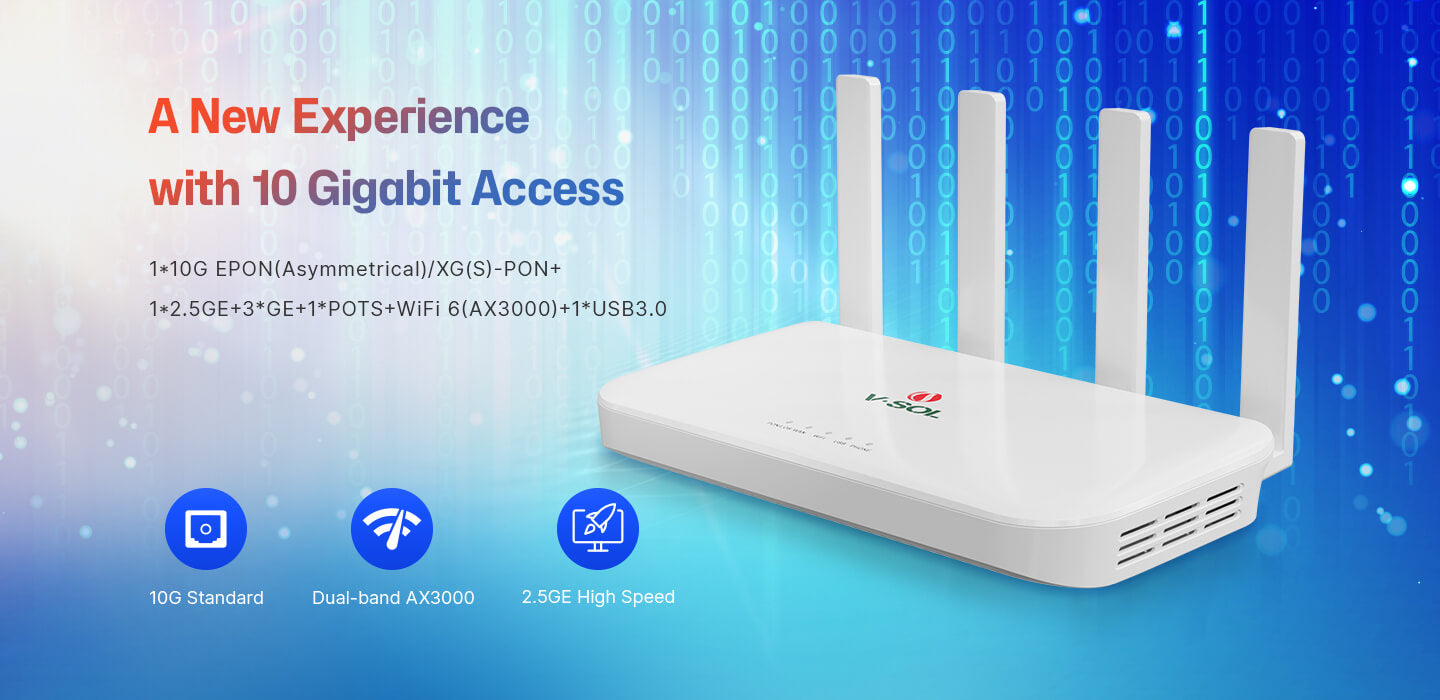

2.5GE+3GE+1POTS+1USB3.0+WiFi 6 HGU ONT Model: HG3110AX Spec: 1*10G EPON(Asymmetrical) / XG(S)-PON+1*2.5GE+3*GE+1*POTS+WiFi 6(AX3000)+1*USB3.0 Weight: 425g

V.SOL

2.5GE+3GE+1POTS+1USB3.0+WiFi 6 HGU ONT

Name: 2.5GE+3GE+1POTS+1USB3.0+WiFi 6 HGU ONT
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: HG3110AX , Spec: 1*10G EPON(Asymmetrical) / XG(S)-PON+1*2.5GE+3*GE+1*POTS+WiFi 6(AX3000)+1*USB3.0

Contact Now

DataSheet PDF

Description
Reviews

Description

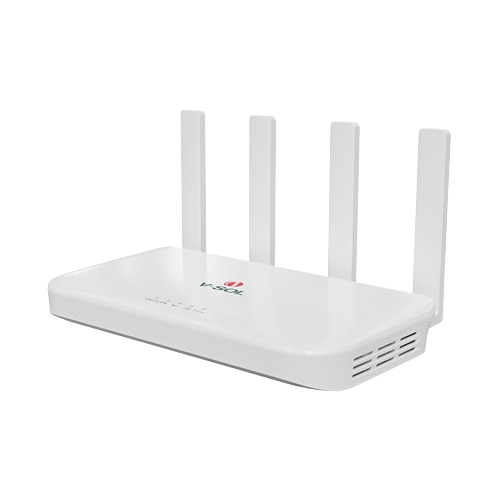

Product Description: HG3110AX HGU ONT

The HG3110AX HGU (Home Gateway Unit) ONT (Optical Network Terminal) is a cutting-edge device that combines high-speed internet connectivity, voice over IP (VoIP) capabilities, and advanced wireless connectivity in a single unit. This HGU ONT is perfect for homes and small businesses seeking a reliable and feature-rich networking solution.

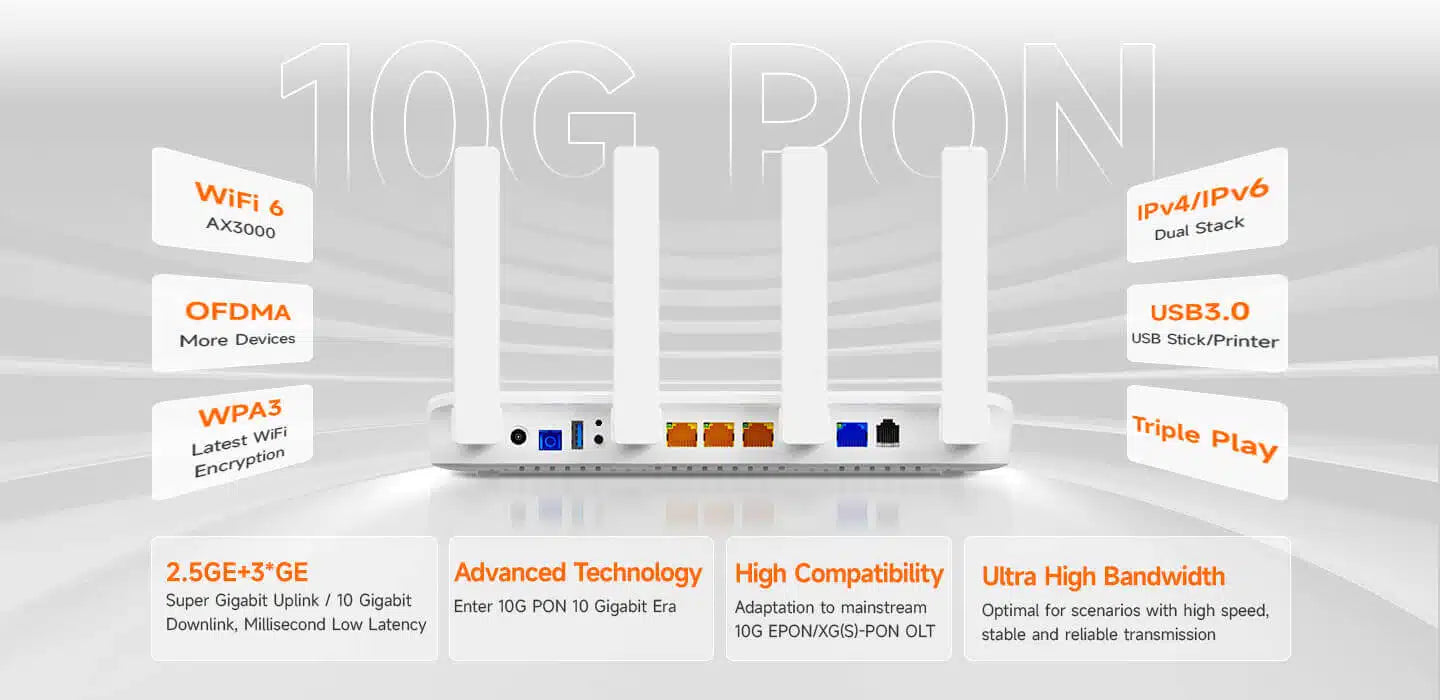

Key Features:

2.5 Gigabit Ethernet Port: High-speed internet connectivity for devices
3 Gigabit Ethernet Ports: Additional high-speed connectivity options
1 POTS (Plain Old Telephone Service) Port: Supports traditional voice services
1 USB 3.0 Port: High-speed data transfer and connectivity
WiFi 6 (AX3000): Advanced wireless connectivity with increased speed and capacity
10G EPON (Asymmetrical) / XG(S)-PON Technology: Enables high-speed internet connectivity over fiber-optic networks

Product Specifications:

Model: HG3110AX
Type: 2.5GE+3GE+1POTS+1USB3.0+WiFi 6 HGU ONT
Specification: 110G EPON(Asymmetrical) / XG(S)-PON+12.5GE+3GE+1POTS+WiFi 6(AX3000)+1*USB3.0

This HGU ONT is designed to provide a robust and reliable internet connection, voice services, and advanced wireless connectivity, making it an ideal choice for those seeking a high-performance and feature-rich device.

Specifications

○ Hardware Parameter
Dimension	244mm131mm36mm (LWH)
Net weight	425g
Operating condition	Operating temp:0 ~ +55°C Operating humidity:5 ~ 90% (non-condensed)
Storing condition	Storing temp: -30 ~ +60°C Storing humidity: 5 ~ 90% (non-condensed)
Power adapter	12V/2A
Power supply	24W
Interface	12.5GE+3GE+1POTS+1USB3.0+WiFi 6
Indicators	PON/LOS, WAN, USB, PHONE, WIFI

○ Interface Parameter
PON Interface	l 10G PON port: Class B+ l SC single mode, SC/UPC connector l TX optical power: 6dBm(XGS-PON), 4dBm(XG-PON), 3.5dBm(10G EPON) l RX sensitivity: -29.5dBm l Overload optical power: -7dBm l Transmission distance: 20km l Wavelength: 10G EPON: DS 1577nm/US 1310nm XG(S)-PON:DS 1577nm/US 1270nm
10G PON layer	l IEEE 802.3av(10G-EPON) l ITU-T G.987(XG-PON) l ITU-T G.9807.1 (XGS-PON)
User interface	l 12.5GE, Auto-negotiation, RJ45 ports l 3GE, Auto-negotiation, RJ45 ports l 1POTS, RJ11 Connector l 1USB3.0
Antenna	24dBi (2.4GHz), 25dBi(5GHz) external antennas
USB	1×USB 3.0 for Shared Storage/Printer

○ Function Data
O&M	l WEB/TELNET/OAM/OMCI/TR069 l Support private OAM/OMCI protocol and Unified network management of VSOL OLT
Internet Connection	Support Bridge/Router mode
Multicast	l IGMP v1/v2/v3, IGMP snooping l MLD v1/v2 snooping
VoIP	l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation, VAD/CNG,DTMF Relay l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909

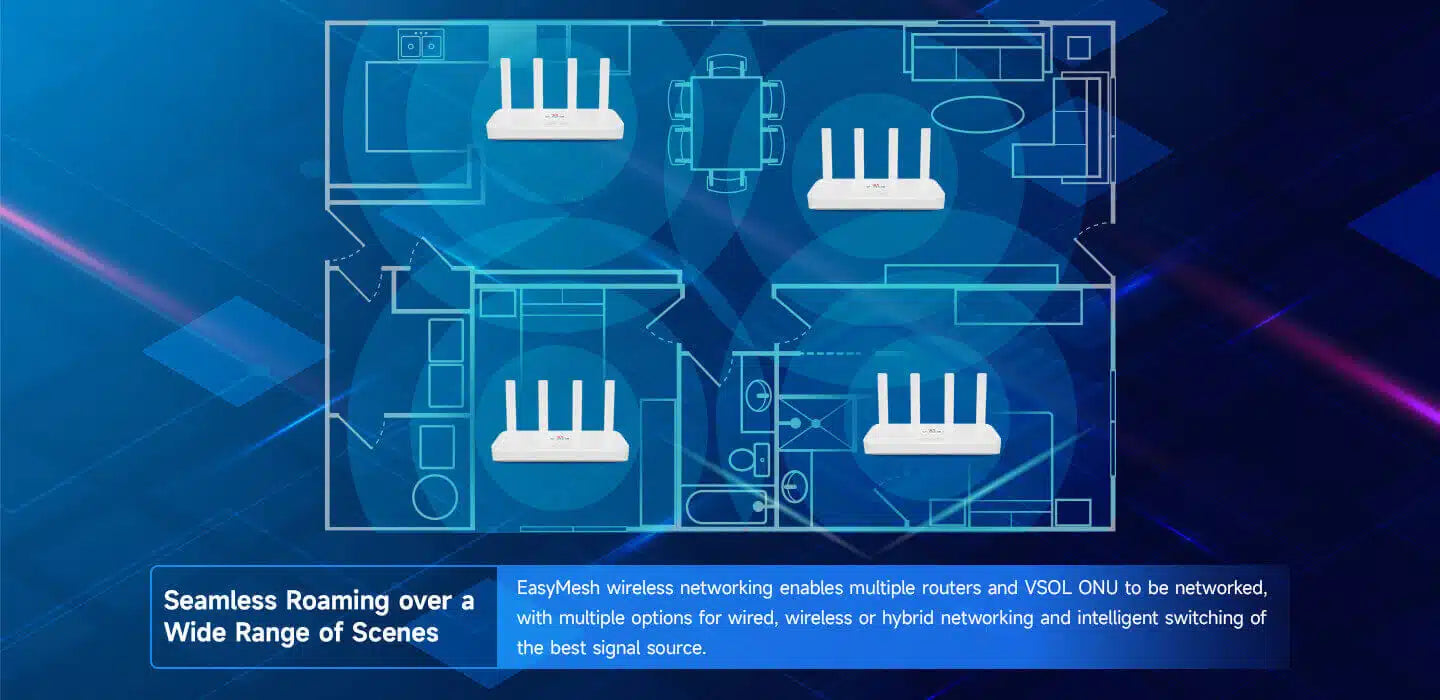

WIFI	l Wi-Fi 6: 802.11a/n/ac/ax 5GHz & 802.11g/b/n/ax 2.4GHz l WiFi Encryption: WEP-64/WEP-128/ WPA/WPA2/WPA3 l Support OFDMA, MU-MIMO, Dynamic QoS, 1024-QAM l Smart Connect for one Wi-Fi name – One SSID for 2.4GHz and 5GHz dual band l Support WIFI Easy-mesh function
L2	802.1D&802.1ad bridge, 802.1p Cos,802.1Q VLAN
L3	IPv4/IPv6, DHCP Client/Server, PPPoE, NAT, DMZ, DDNS
Firewall	Anti-DDOS, Filtering Based on ACL/MAC /URL
