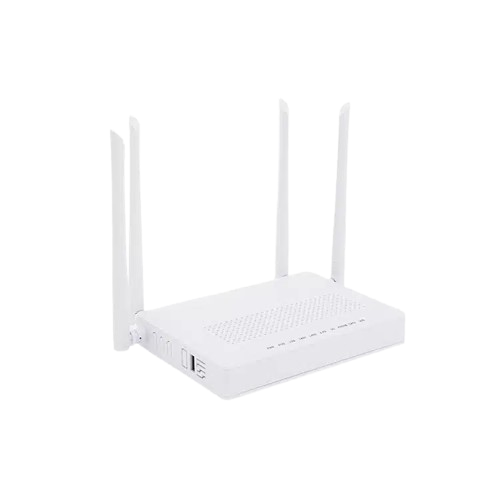

2GE+1POTS+WiFi 5+CATV HGU Model: HG323ACT Spec: 2*GE+1POTS+WiFi 5+USB 3.0+CATV Weight: 345g

V.SOL

2GE+1POTS+WiFi 5+CATV HGU

Name: 2GE+1POTS+WiFi 5+CATV HGU
Brand: V.SOL
Availability: InStock
Rating: 5.0 (10 reviews)

Model: HG323ACT , Spec: 2*GE+1POTS+WiFi 5+USB 3.0+CATV

Contact Now

DataSheet PDF

Description
Reviews

Description

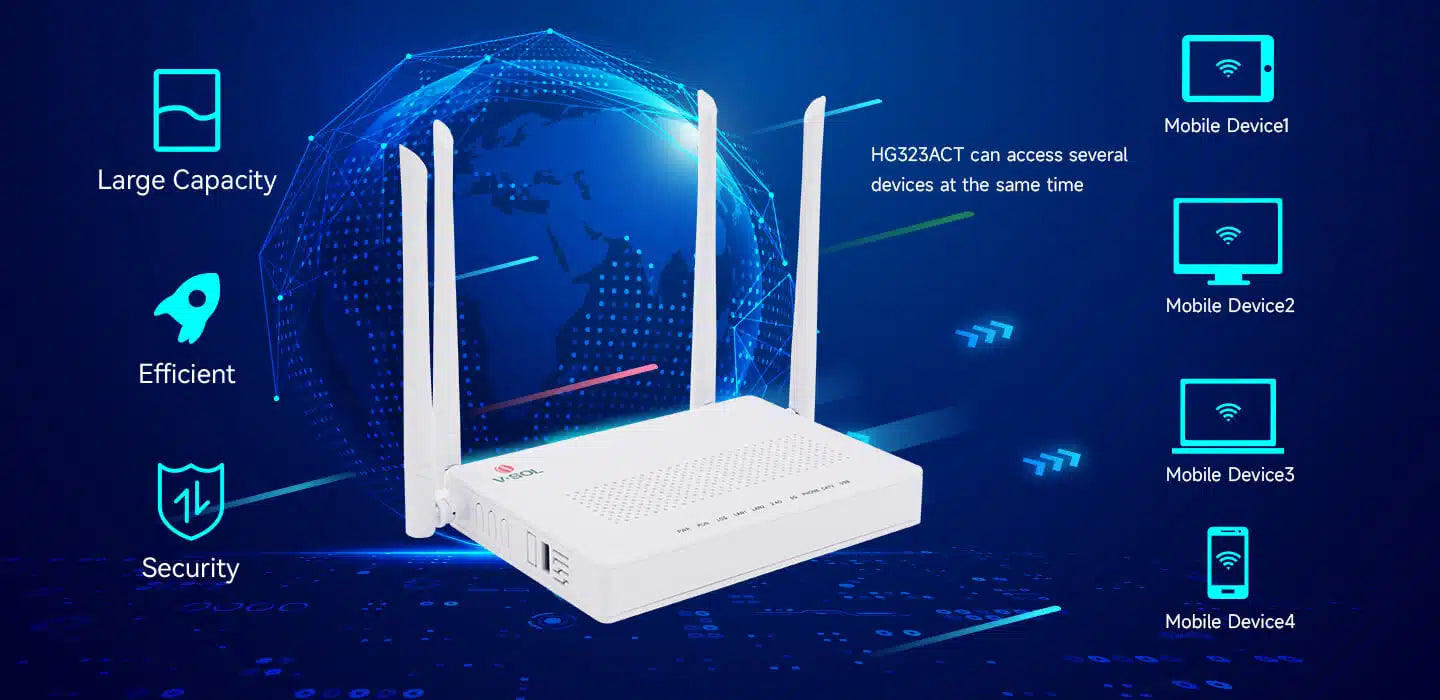

The HG323ACT is a cutting-edge Hybrid Gigabit Unit (HGU) that offers a comprehensive and reliable internet connectivity solution. With its advanced features and robust design, it is ideal for homes, small businesses, and enterprises.

Key Features:

2 Gigabit Ethernet (GE) ports for high-speed internet access
1 POTS (Plain Old Telephone Service) port for voice connectivity
WiFi 5 (802.11ac) support for wireless connectivity
USB 3.0 port for high-speed data transfer and charging
CATV (Community Antenna Television) support for cable television services

Technical Specifications:

Model: HG323ACT

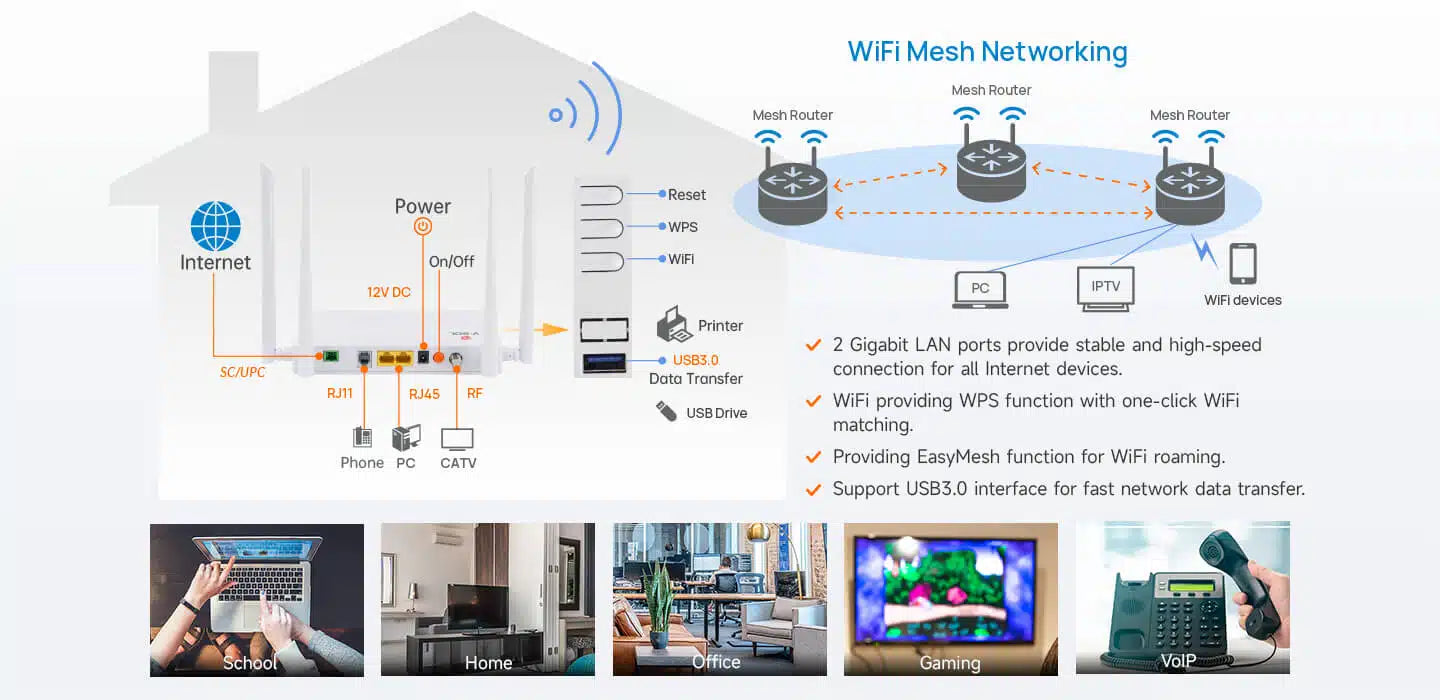

Interface: 2 GE + 1 POTS + WiFi 5 + USB 3.0 + CATV
WiFi Standards: 802.11ac
Power Supply: DC 12V, 1A
Dimensions: 180mm x 120mm x 30mm
Operating Temperature: 0°C to 40°C
Humidity: 5% to 90% non-condensing

○ Hardware Parameter
Dimension	178mm×120mm×30m(L×W×H)
Net weight	0.28Kg
Operating condition	Operating temp: -10 ~ +55°C Operating humidity: 5 ~ 95% (non-condensed)
Storing condition	Storing temp: -40 ~ +70°C Storing humidity: 5 ~ 95% (non-condensed)
Power adapter	DC12V,1.5A, external AC-DC power adaptor
Power supply	≤10W

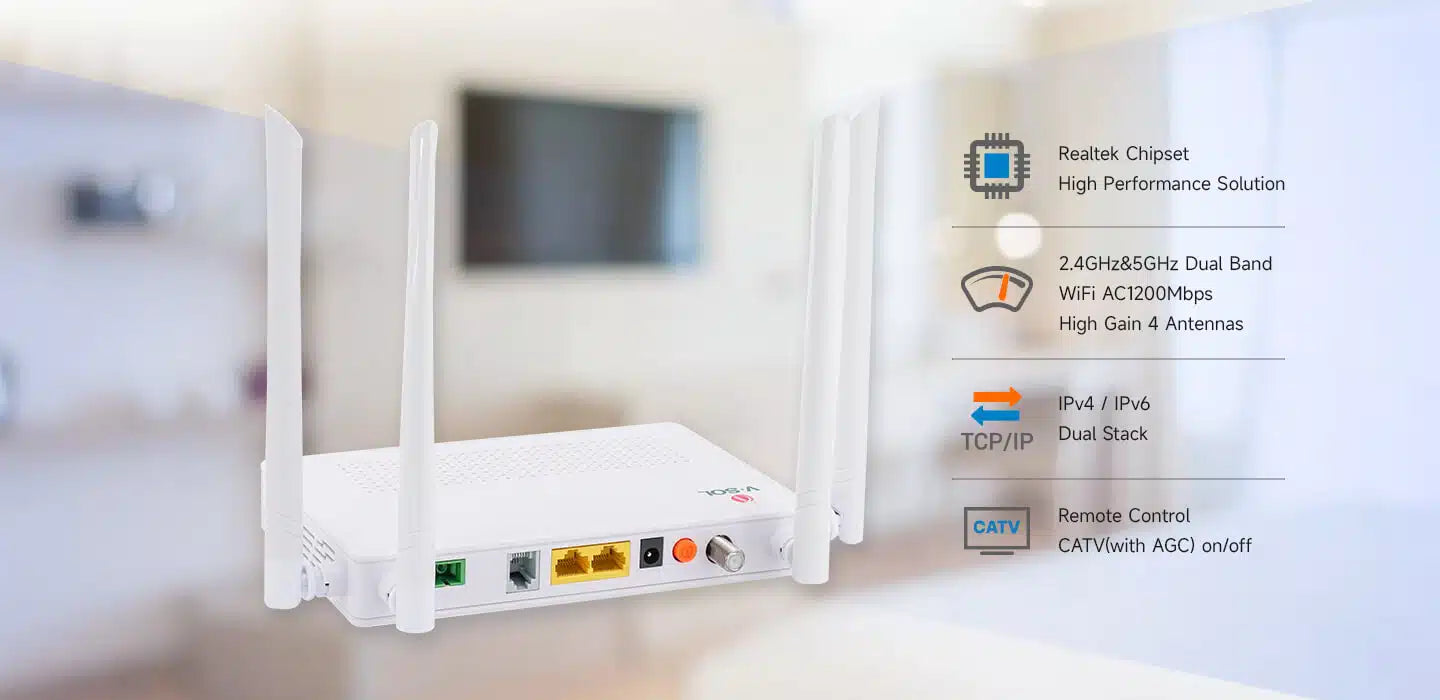

Interface	2GE+1POTS+WiFi 5+USB 3.0+CATV
Indicators	PWR, PON, LOS, WAN, LAN1, LAN2, 2.4G, 5G, PHONE, CATV, USB 3.0

○ Interface parameter
PON interface	l 1XPON port(EPON PX20+ & GPON Class B+) l SC single mode, SC/UPC connector l TX optical power: 0～+4dBm l RX sensitivity: -27dBm l Overload optical power: -3dBm(EPON) or -8dBm(GPON) l Transmission distance: 20KM l Wavelength: TX 1310nm, RX1490nm
Optical interface	SC/APC connector

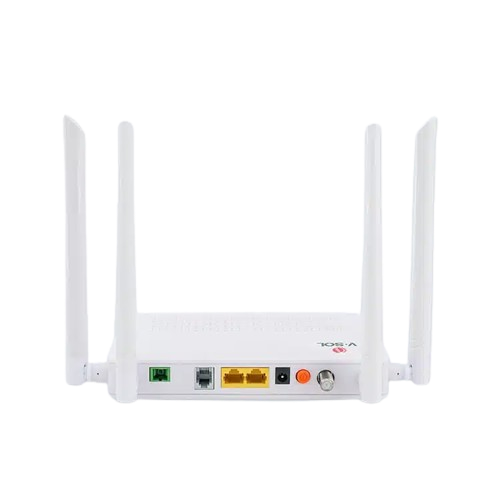

User interface	l 2*GE, Auto-negotiation, RJ45 ports l 1 POTS RJ11 Connector

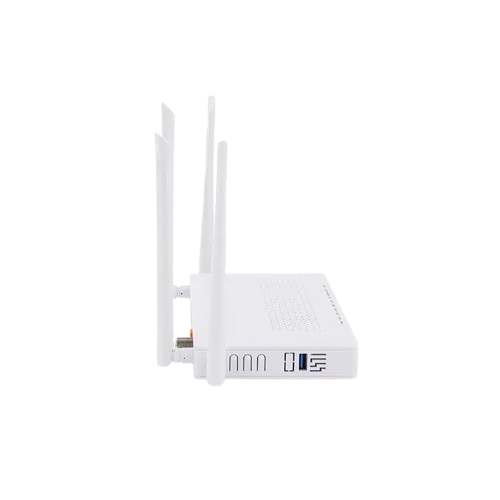

USB interface	1*USB 3.0 for Shared Storage/Printer
WLAN interface	l Compliant with IEEE802.11b/g/n/ac l WiFi:2.4GHz 2×2, 5.8GHz 2×2, 5dBi antenna, rate up to 1.167Gbps,Multiple SSID l TX power: 11n–22dBm/11ac–24dBm
CATV interface	l Optical receiving wavelength: 1550±10nm l Optical input range: +2～-18dBm l Optical reflection loss: ≥40dB l RF frequency range: 47～1000MHz l RF output impedance: 75Ω l RF output level and AGC range: ≥81±2dBuv@+1～-10dBm ≥79±2dBuv@ 0～-11dBm ≥77±2dBuv@-1～-12dBm ≥75±2dBuv@-2～-13dBm ≥73±2dBuv@-3～-14dBm ≥71±2dBuv@-4～-15dBm l MER: ≥32dB(-14dBm optical input)

○ Function Data
Management	l OAM/OMCI,Telnet,WEB,TR069 l Support full management of HGU functions by VSOL OLT
Mode	Support bridge, router and bridge/router mixed mode
Data Service Functions	l Full speed non-blocking switching l 2K MAC address table l 64 full range VLAN ID l Support QinQ VLAN, 1:1 VLAN, VLAN reusing, VLAN trunk, etc. l Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc. l Support auto polarity detection of Ethernet ports (AUTO MDIX) l Integrated IEEE802.1p QoS with four level priority queues l Support IGMP v1/v2/v3 snooping/proxy and MLD v1/v2 snooping/proxy
Wireless	l Integrated 802.11b/g/n/ac l Authentication : WEP/WAP-PSK(TKIP)/WAP2-PSK(AES) l Modulation type: DSSS、CCK and OFDM l Encoding scheme: BPSK、QPSK、16QAM and 64QAM
VoIP	l SIP and IMS SIP l G.711a/G.711u/G.722/G.729 Codec l Echo cancellation,VAD/CNG,DTMF l T.30/T.38 FAX l Caller Identification/Call Waiting/Call Forwarding/Call Transfer/Call Hold/3-way Conference l Line testing according to GR-909
L3	l Support NAT, Firewall l Support IPv4/IPv6 dual stack
Other function	l Integrated OAM/OMCI remote configuration and maintenance function l Support rich QinQ VLAN functions and IGMP snooping multicast features
